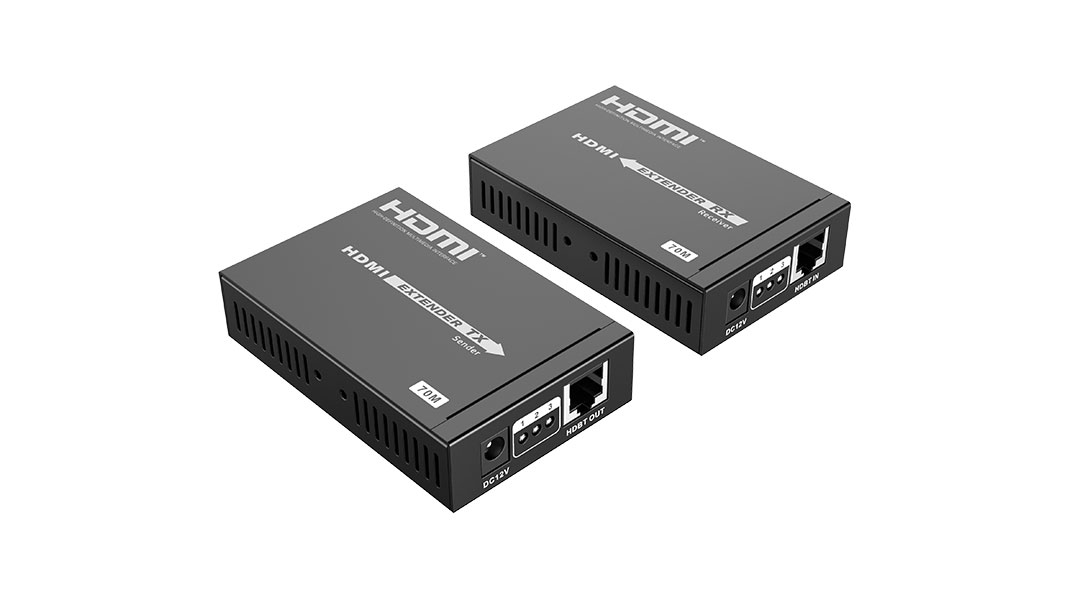

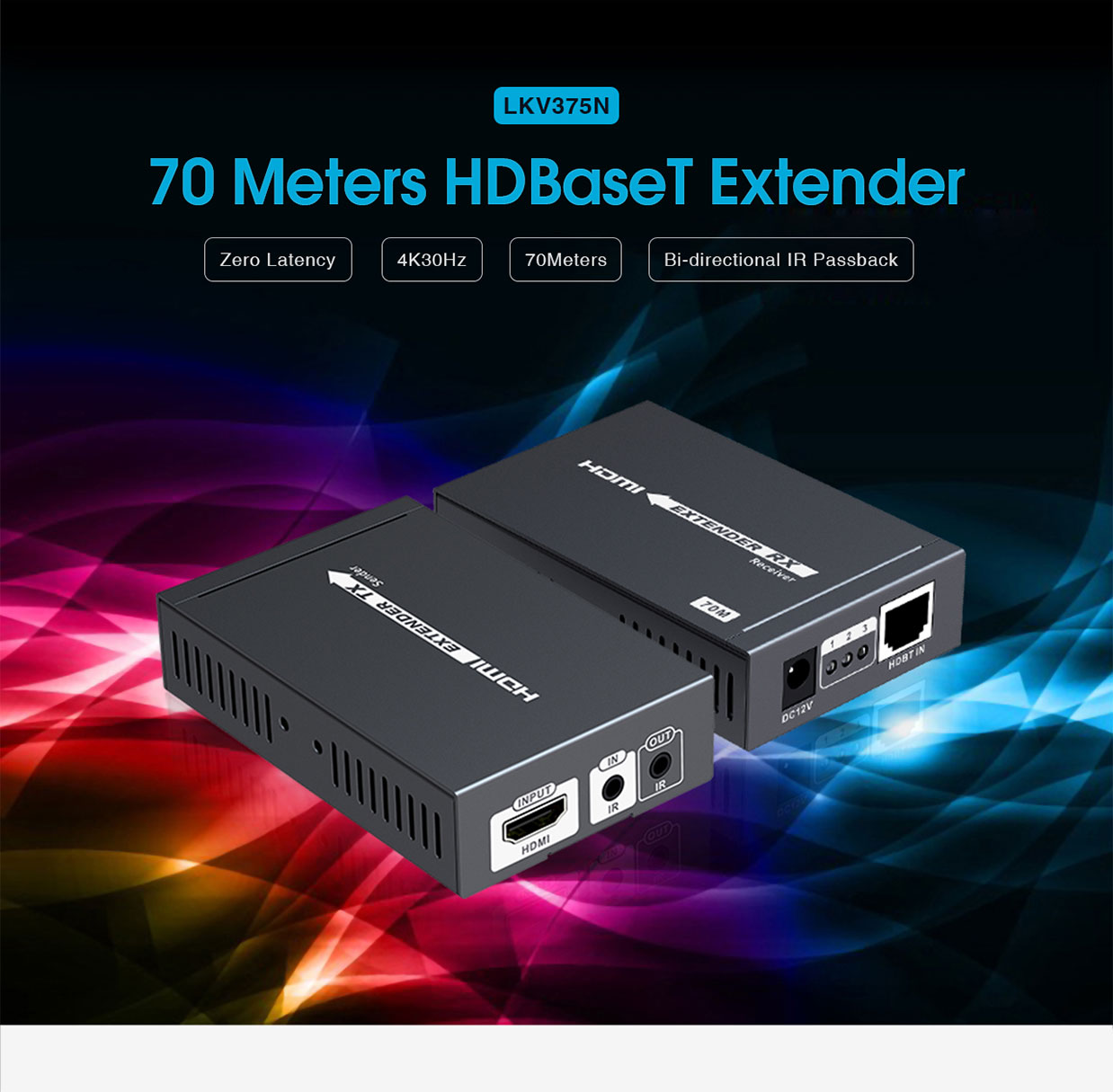

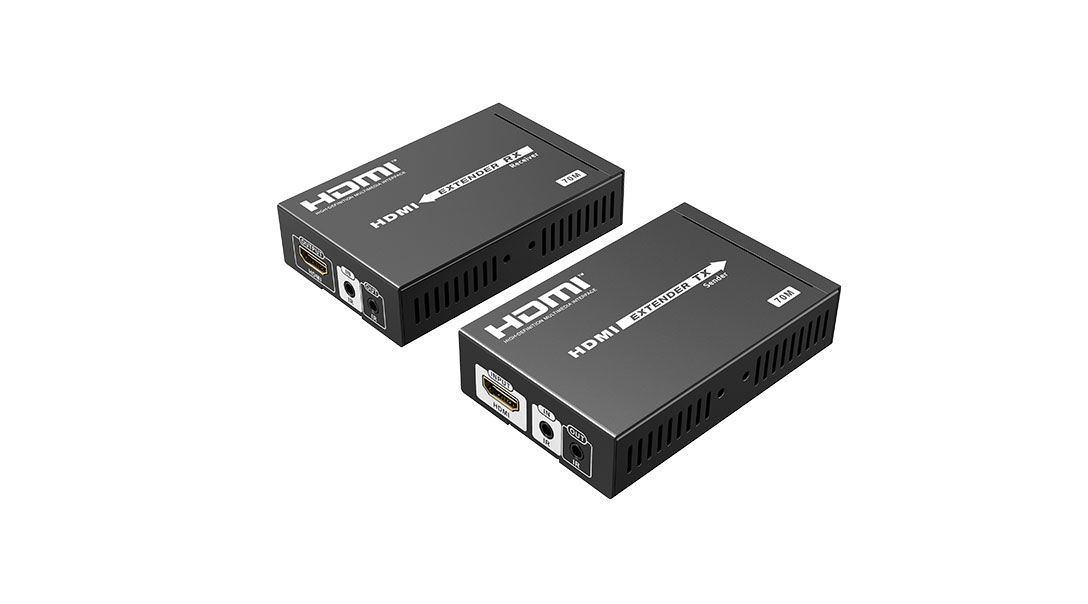

LKV375N

HDMI HDBaseT Extender over single Cat5e/6/7-70m

This HDBaseT single network cable extender transmits HDMI signal up to 70meters over cat6 fluently and clearly. It is lossless in signal and supports 3D, 24bits deep color, CEC and HDCP. Support ultra HD 4K@30Hz.

Introduction

Parameters

Downloads

Based on HDBaseT transmission technology, zero delay transmission can be realized.

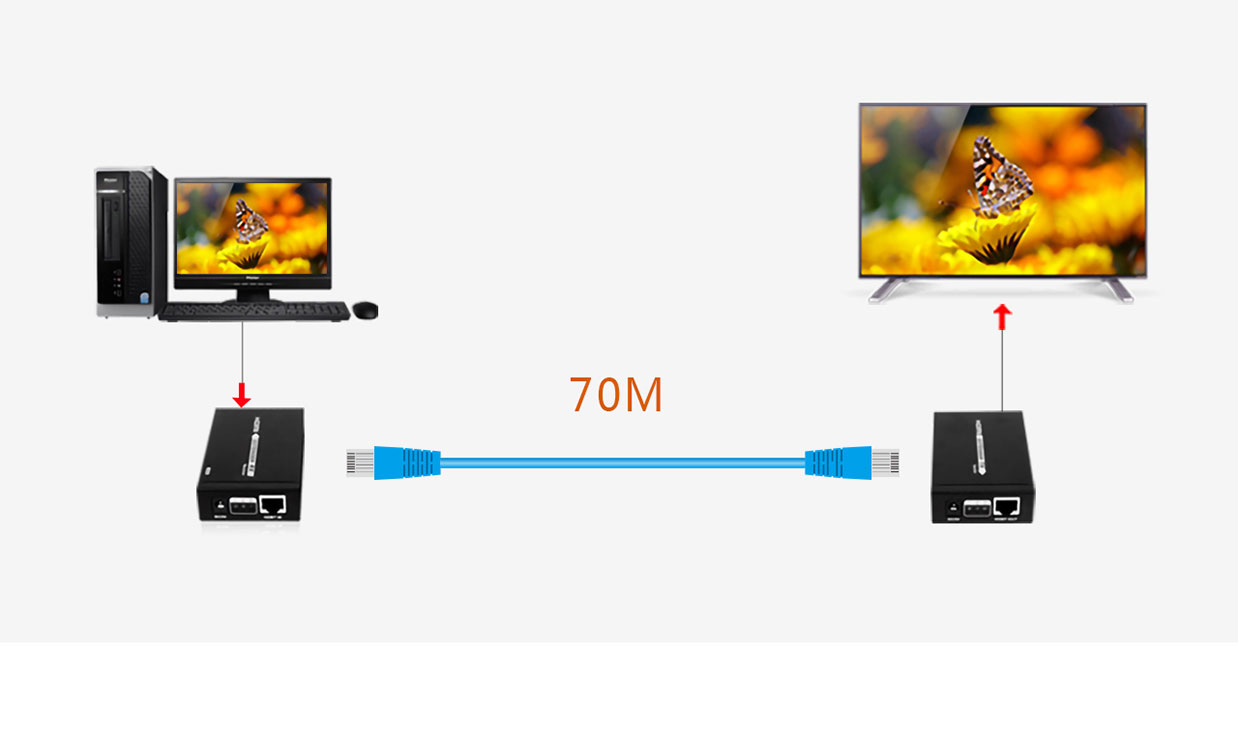

Supports up to 4K@30Hz UHD resolution, and can extend the 1080P signal to 70 meters through a CAT6/6A/7 network cable.

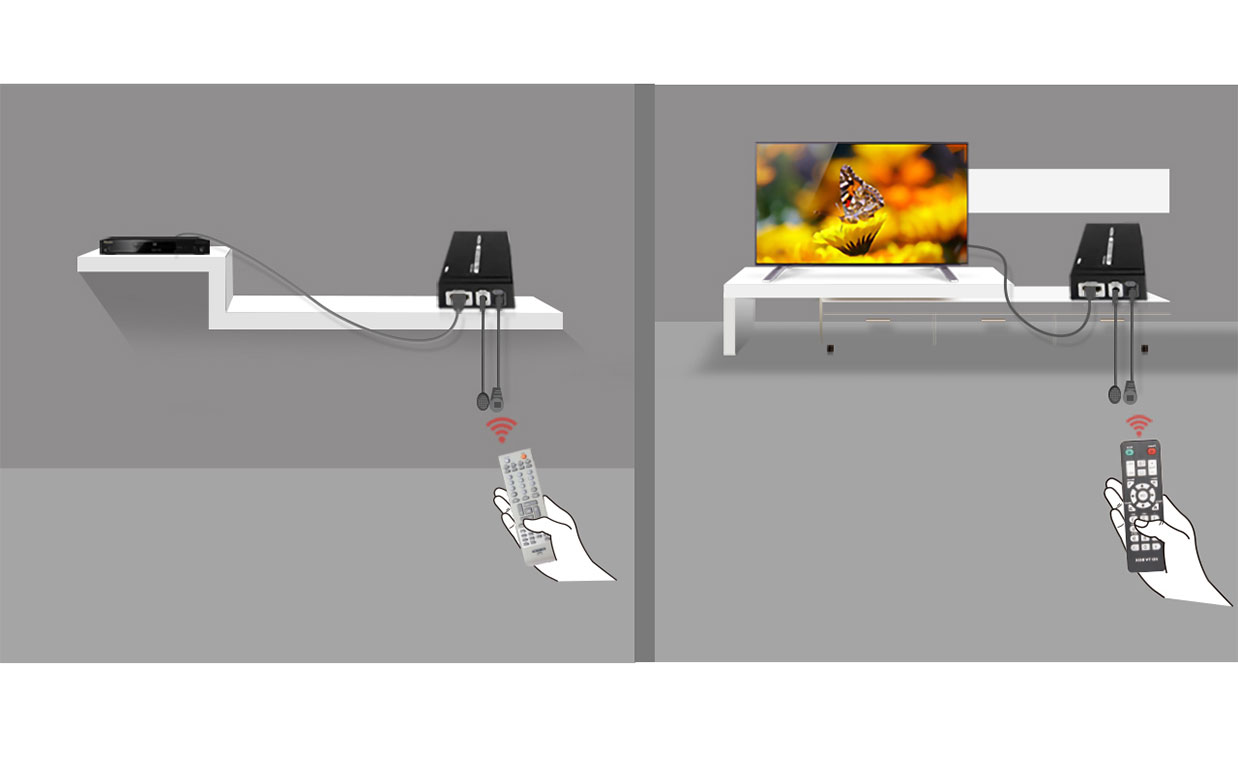

Support bi-directional IR passback, convenient for remote control.

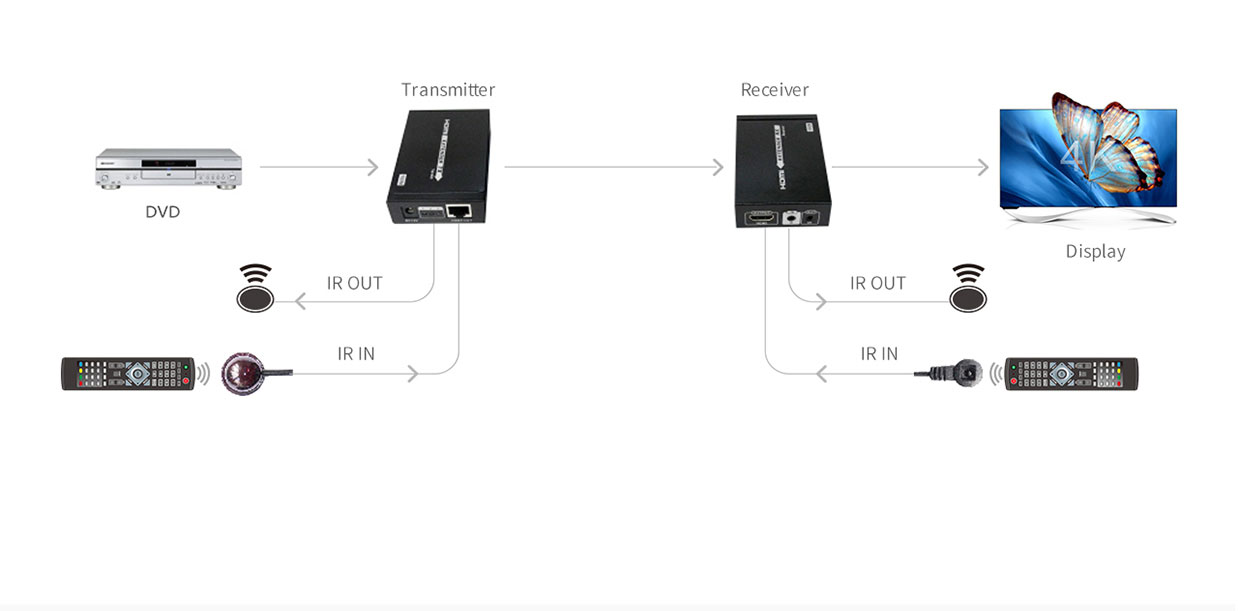

Connection

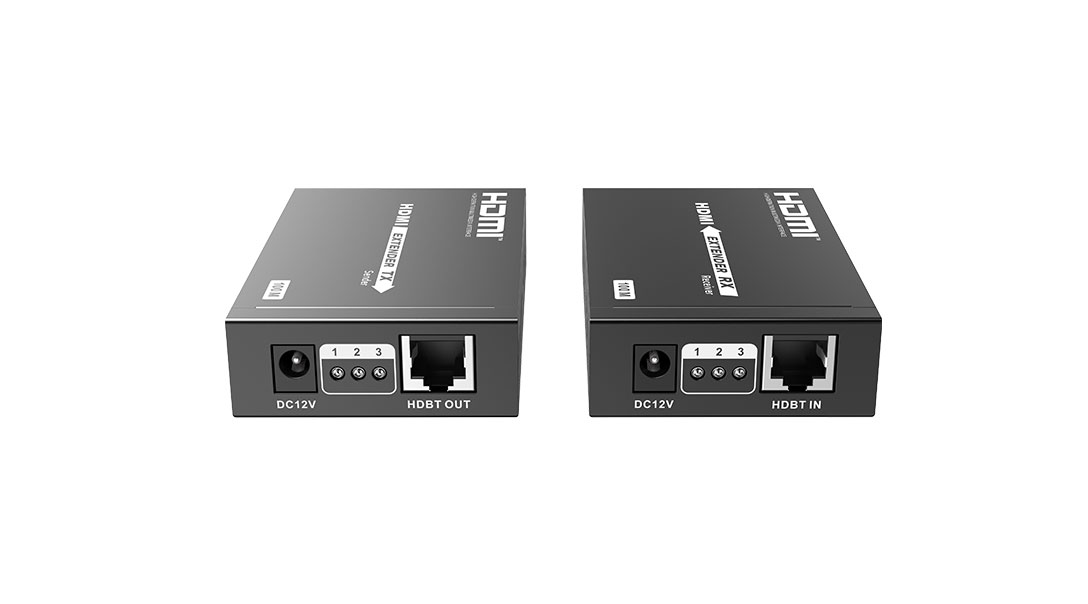

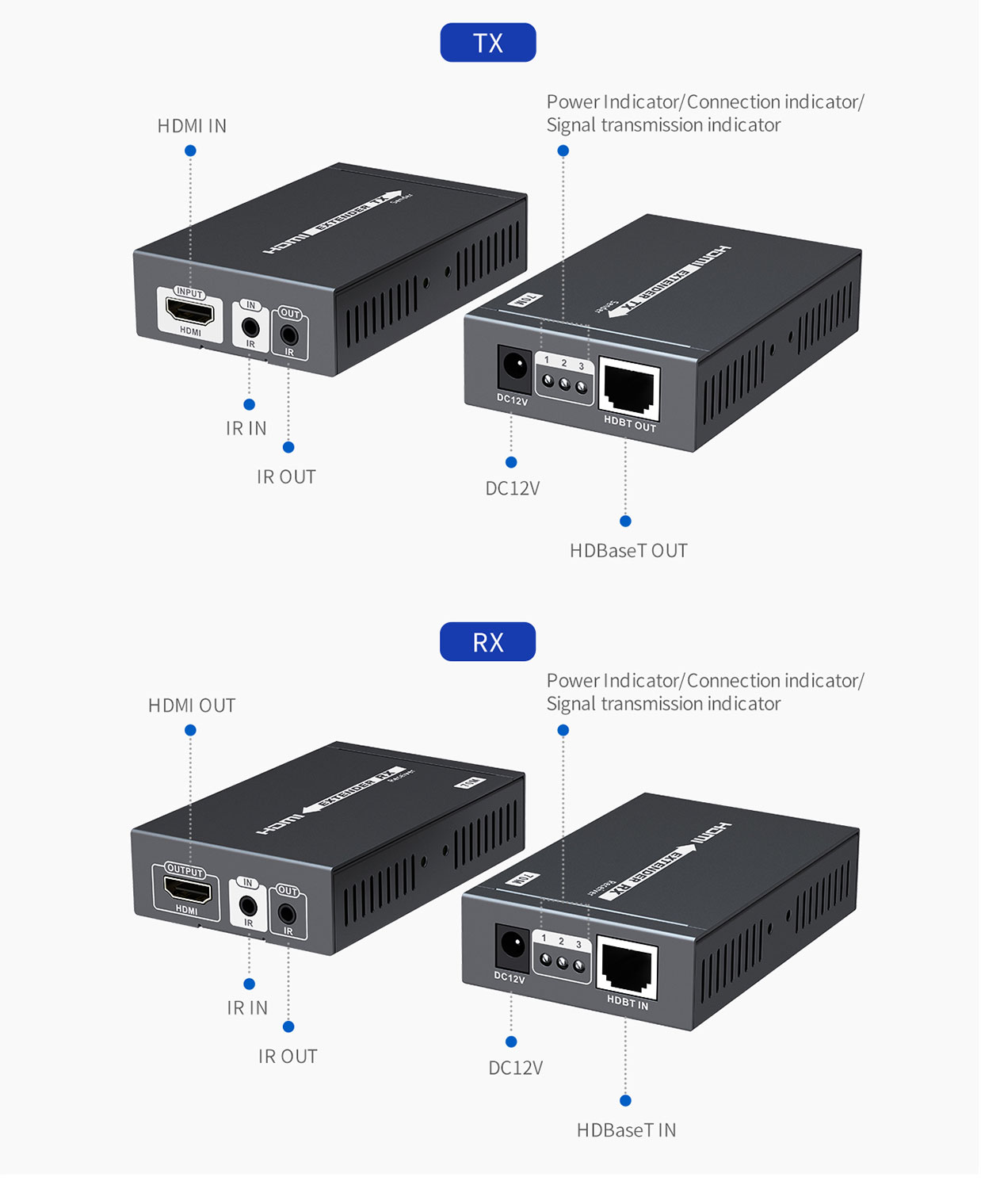

I / O Ports

Application

HDMI signal

Compatible with HDCP, support CEC and 24bits deep color

Resolution Supported

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3D, 4Kx2K@24/25/30/30Hz

Audio

LPCM, DTS-HD, Dolby True HD

Network cable

CAT5E, CAT6, CAT6A, CAT7

CAT5E-60m

UP to 1080p@60Hz 36bpp

CAT5E-35m

1080p@60Hz 48bpp, 1080p@60Hz 3D,4K@30Hz

CAT6-70m

UP to 1080p@60Hz 36bpp

CAT6-40m

1080p@60Hz 48bpp, 1080p@60Hz 3D,4K@30Hz

Infrared back

Support 20~60kHz wide frequency devices and Bi-directional IR transmission

Power supply

DC12V/1A*2pcs

Power consumption

TX<3.5W RX<6W

Product dimension

98.5(L)x66.5(W)x23(H)mm*2pcs

Enclosure material

Metal

Weight

TX:79g RX:107g

Color

Black
