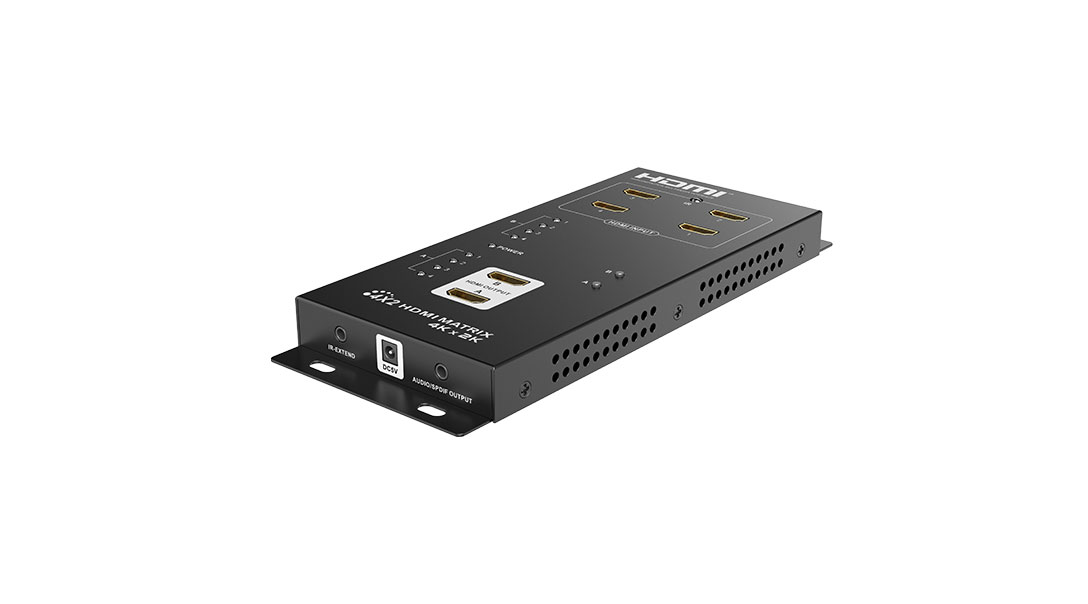

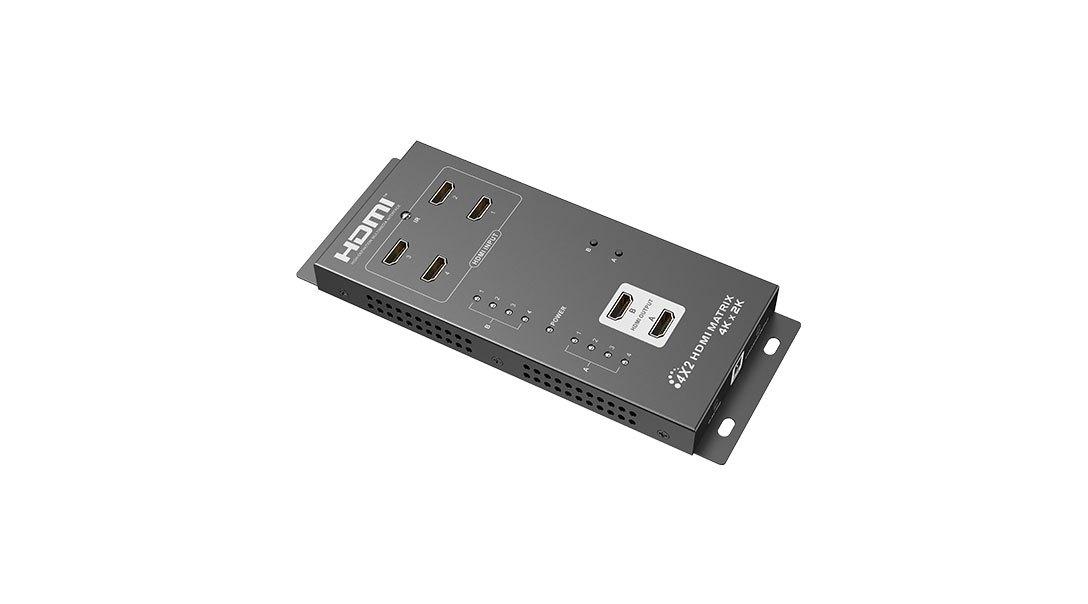

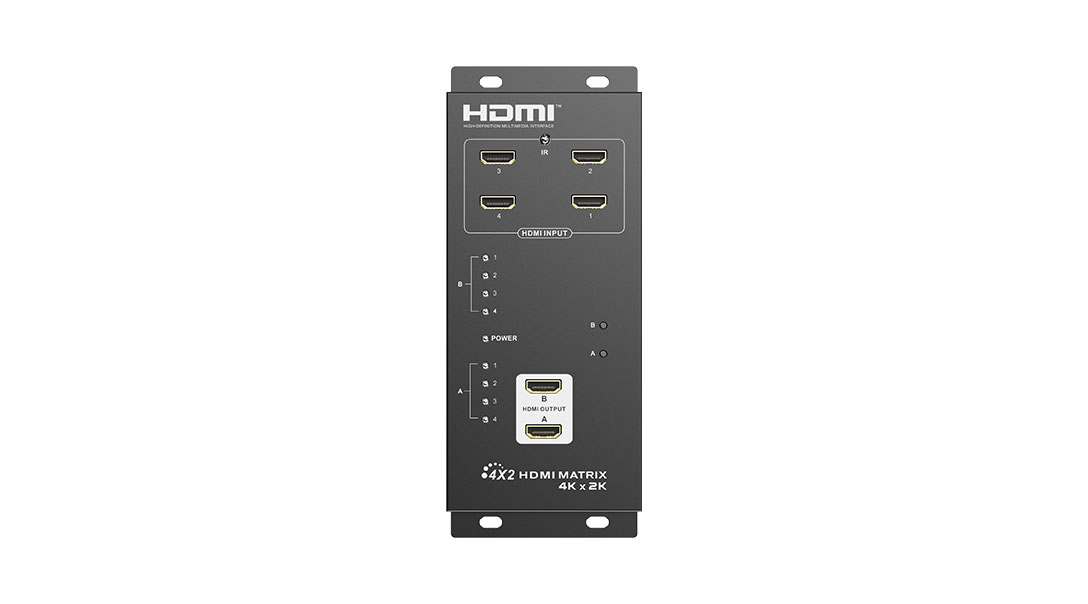

4X2 HDMI™ Matrix Switch 4K@30Hz

This 4x2 HDMI™ Matrix Switch is with 4 HDMI™ INPUTS AND 2 HDMI™ outputs. It is a true matrix and can distribute any one of 4 sources to either of 2 displays, and can work as a splitter to show the same source on 2 displays simultaneously. Analog R/L audio an


* Routes four Ultra Hi-Def sources to two Ultra HD displays.

* Supports resolutions up to Ultra HD 4KX2K@30Hz.

* Supports 12-bit Deep Color.

* Supports PCM, Dolby Digital, and DTS Digital Surround.

* Supports audio output simultaneously(from output A).

* HDMI input/output cables may be up to 10/15 meters with 1080p/8-bit resolution.

* Supports HDMI/MHL dual mode input(input1).

* Supports CEC.

* Supports HDCP.

* Supports IR remote control.

* Supports surface-mountable.


Product Manual

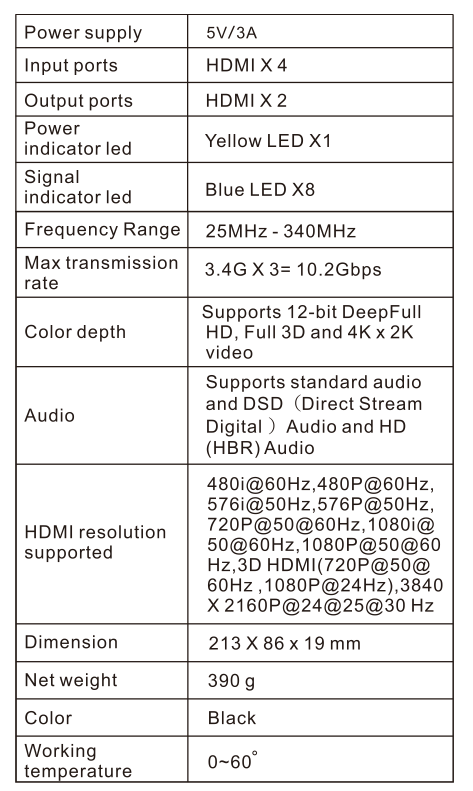

Product specification
