Compatibility
HDMI 1.4，HDCP1.4
Resolutions
800x600、1024x768、1280x720、1280x960、 1366x768、 1440x900、1680x1050、1920x1080、 480i@60Hz、 480p@60Hz、576i@50Hz、 576p@50Hz、720p@50/60Hz、1080i@50/60Hz、 1080p@24/25/30/50/60Hz、4K@24/25/30Hz
Audio Formats
PCM、LPCM、DTS-HD、DTS-Audio
Transmission distance
CAT6/6A/7
1080p@60Hz≤70 meters
4K@30Hz≤40 meters

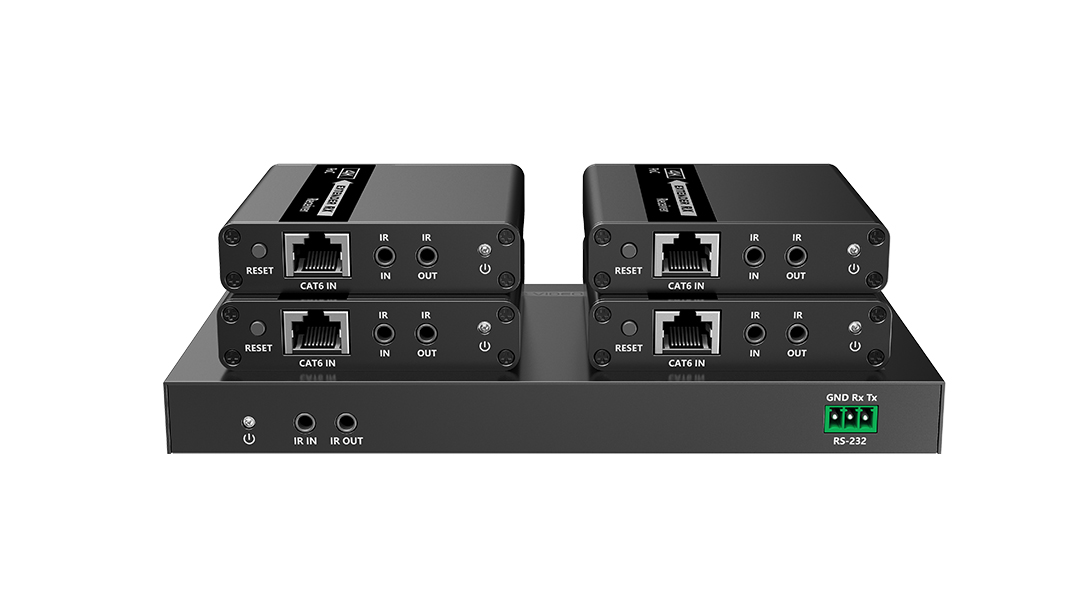

IR Passback
Bi-directional IR passback (20-60khz)
RS-232
3Pin：GND-RxD-TxD，follows RS-232 levels
Default baud rate：9600
Working temperature
-20~60℃
Storage temperature
-30~70℃
Humidity
0~90% RH
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection
Surge protection
Power Supply

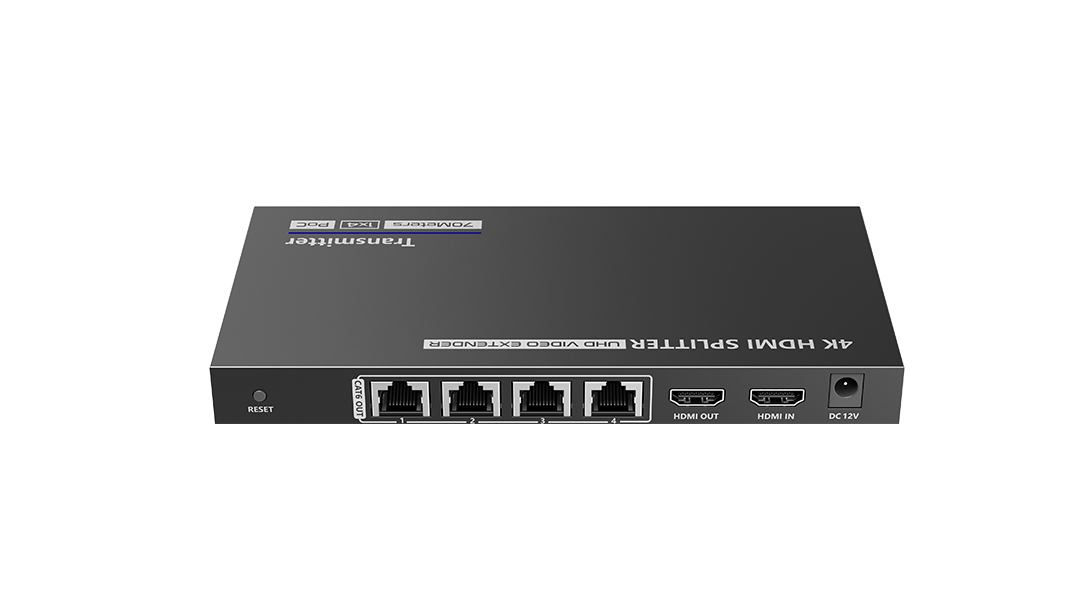

TX: DC12V/2A
RX: DC5V/1A
Power Consumption
TX＜10W RX＜2.5W
Housing
Iron
Color
Black
Weight
TX: 435g
RX: 160g x4
Dimensions
TX: 191.5(L) x 96.5(W) x 19.0(H)mm
RX: 75.0(L) x 80.0(W) x 18.0(H)mm

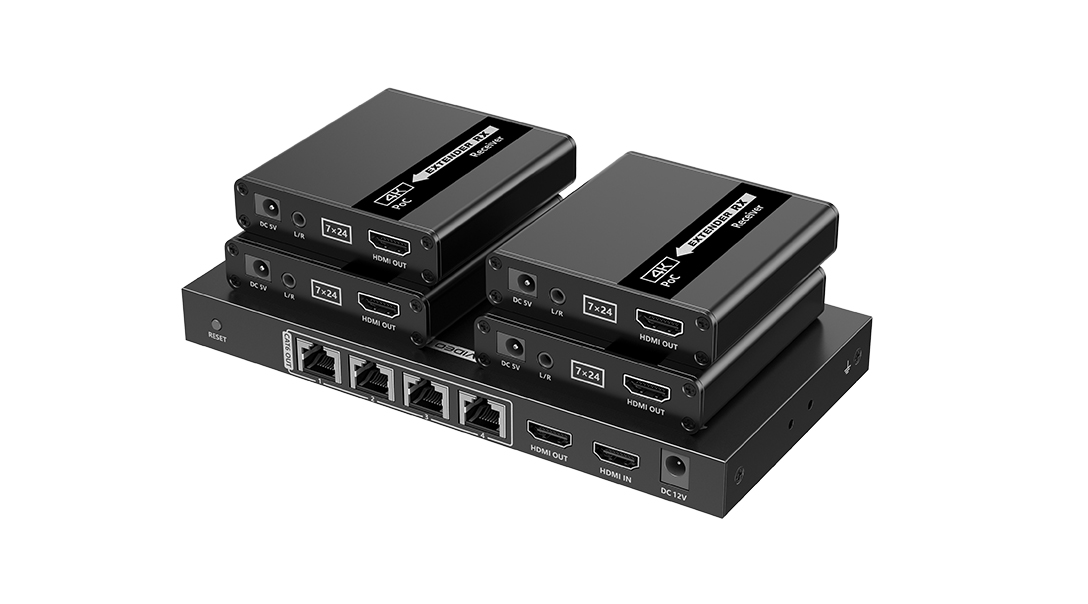

Mode
1 input, 4 output
