LKV828-I

1x8 4K@60Hz HDR 70M Zero-Latency Splitter with Extender

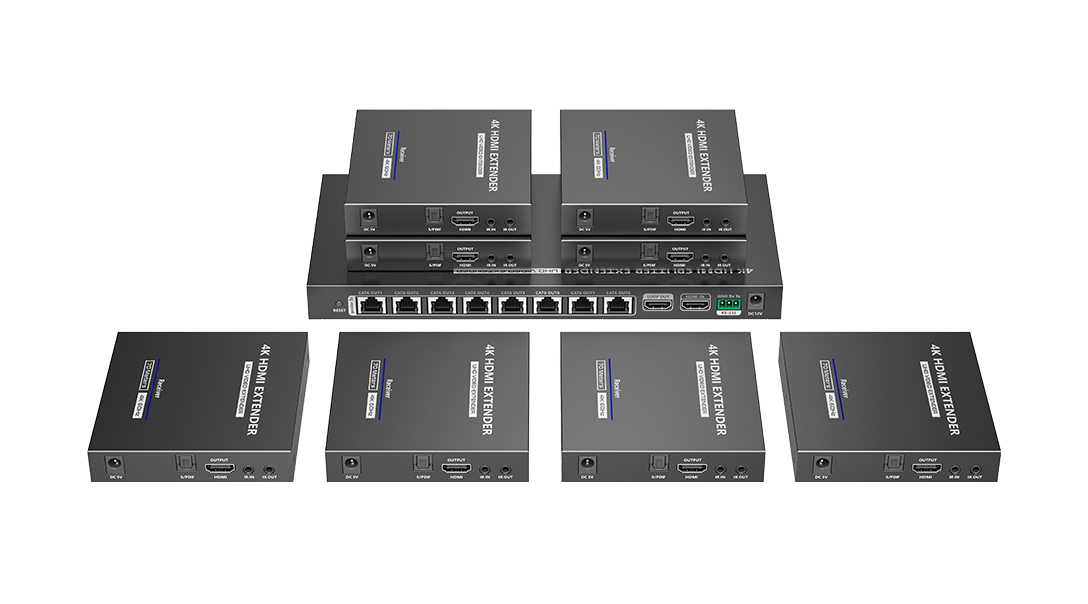

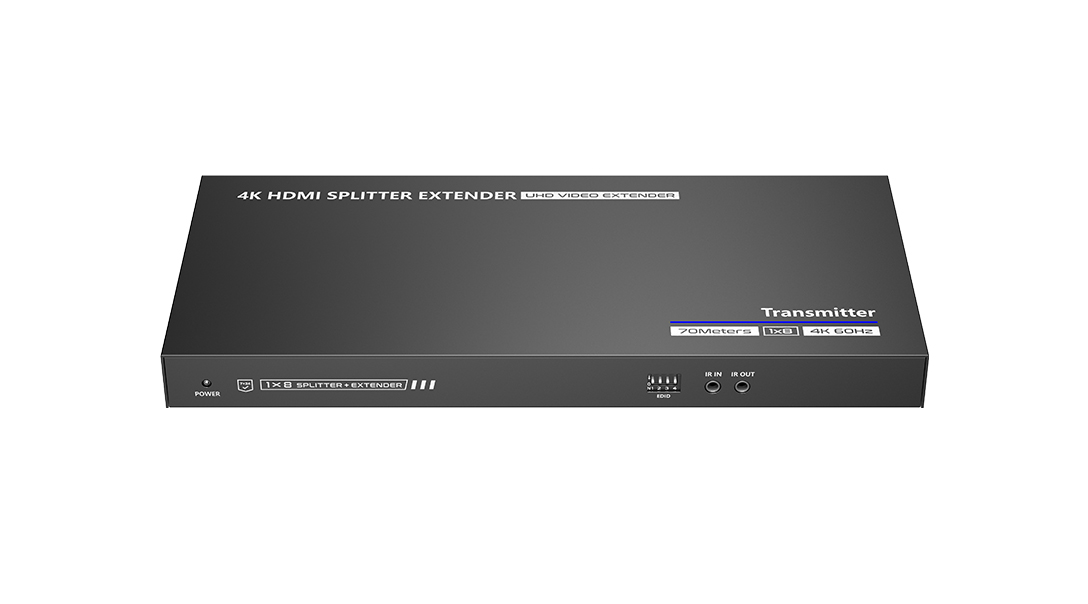

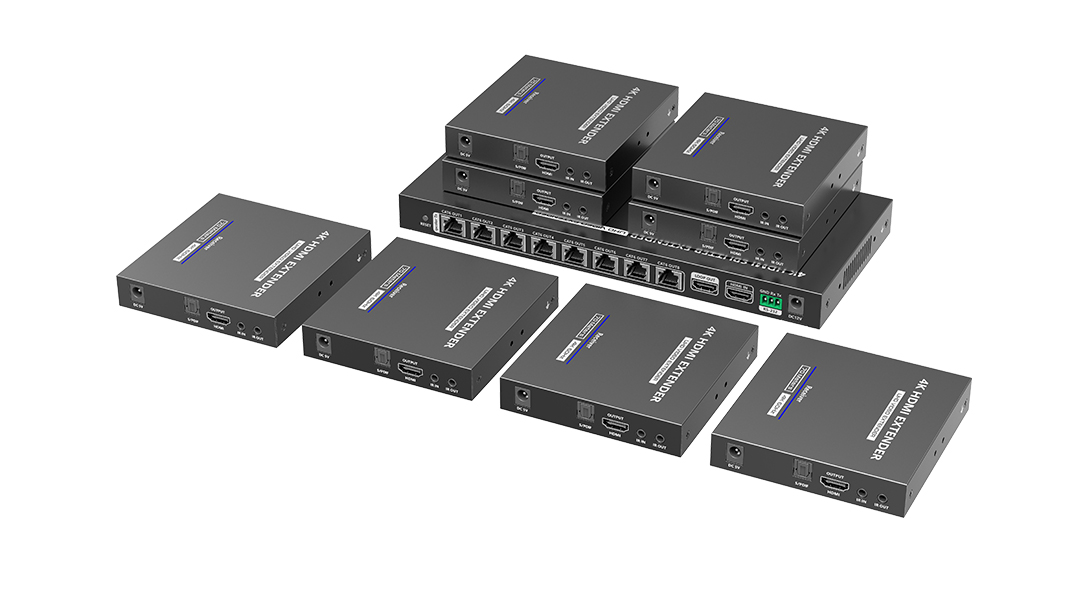

This product is a 1 input 8 outputs extender splitter kit, which integrates the functions of distribution and extension. It distributes 1 HDMI™ input signal to 8 identical signal outputs, extends these signals up to 70 meters, and supports 4K60Hz resolution. It also supports bi-directional IR passback, RS-232 control and other functions. It is suitable for studios, multimedia classrooms, rail transit, etc.

Introduction

Parameters

Downloads

Transmission protocol

ipcolor

Distribution mode

1 IN 8 OUT

Transmission distance

CAT6/6A/7≤70m

HDMI signal

HDMI 2.0, HDCP 2.2

HDMI Resolution

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz

Audio formats

LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1

Bi-directional IR passback (20-60khz)

RS-232

3 pin: TxD-RxD-GND, follows RS-232 levels

Working temperature

-20~60℃

Storage temperature

-30~70℃

Humidity (no condensation)

0~90% RH

Protection

ESD protection
1a Contact discharge level 2
1b Air discharge level 3
Implementation of the standard: IEC61000-4-2
Lightning protection
Surge protection

Power supply

TX: DC 12V/3A
RX: DC 5V/2A

Power consumption

TX<24W
RX＜4W

Material

Iron

Color

Black

Weight

TX: 731g
RX: 243g

Dimension

TX: 264.0(L) x 120.0(W) x 23.0(H) mm
RX: 105.5(L) x 102.5(W) x 20.0(H) mm
