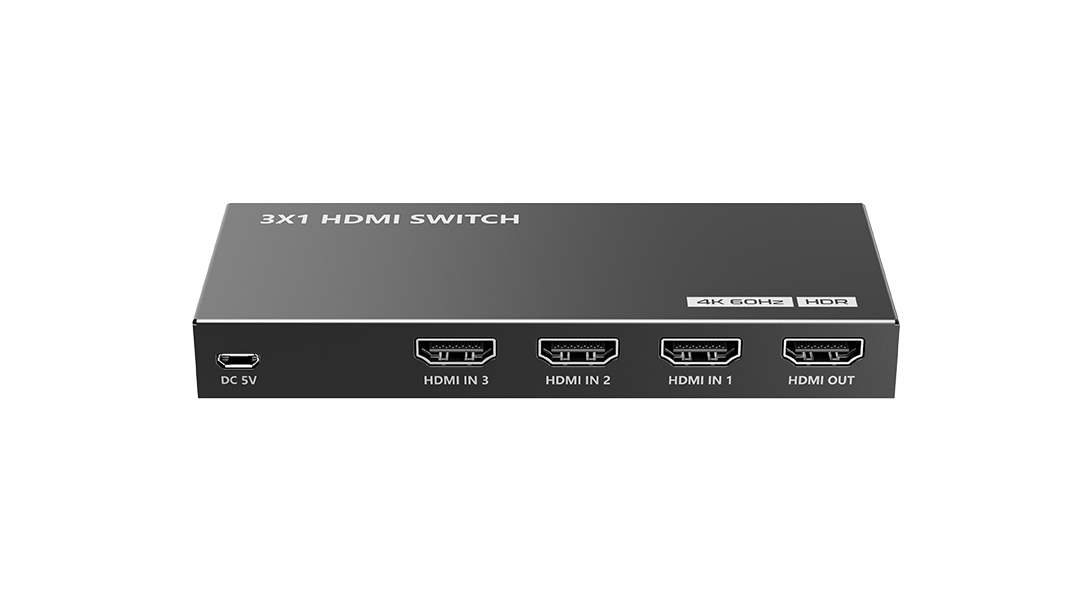

LKV301HDR-V3.0

3x1 HDMI™ Switch 4K@60Hz

This 3×1 switch routes 3 different sources at resolution of up to 4K×2K@60Hz UHD to the display. The switch has 3 HDMI™ inputs, which makes this unit ideal for simultaneous connection of multiple HDMI™ device, such as TV, set top box, DVD, etc. In addition, this switch supports IR control, thus it is easy and flexible to control the input signal as you need. It is perfect for security system, medium entertainment, conference exhibition center and digital monitoring system, etc.
Introduction
Parameters
Downloads


Input ports
3 x HDMI
Output ports
1 x HDMI
Power indicator LED
1 x LED
Signal indicator LED
3 x LED
HDMI version
Compatible with HDMI 1.4, HDMI 2.0
HDCP version
Compatible with HDCP 1.4, HDCP 2.2
Video format supported
Support 12 bit full HD video, 3D video and 4K x 2K@30/60Hz ultra HD video
I/O TMDS signal
0.7~1.2Vp-p
I/O DDC signal
5Vp-p
Audio format supported
Support standard audio and DSD (Direct Stream Digital) and HD (HBR) audio
HDMI resolution
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1920x1200, 3840x 2160@24/25/30/50/60Hz, 4096x2160@24/25/30/50/60Hz
HDR
Support
Working temperature
0°C~60°C
Power supply
DC5V/500mA
Power consumption
<2.5W
Dimension
130(L) x 54(W) x 16.5(H) mm
Weight
170g
Color
Black
