Voltage/Current
DC 5V/1A
Power consumption
TX<4W ，RX<4W
HDMI compliance
HDMI 2.0 (HDR, YUV4:4:4)
HDCP compliance
HDCP 2.2, and HDCP1.4
HDMI resolution
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3440x1440, 2560x1600, 2560x1440, 1920x1200
Supports audio formats
LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/Dolby TrueHD 5.1/Dolby Digital/Dolby Atmos
Transmission speed
18Gbps
Video bandwidth
600MHz

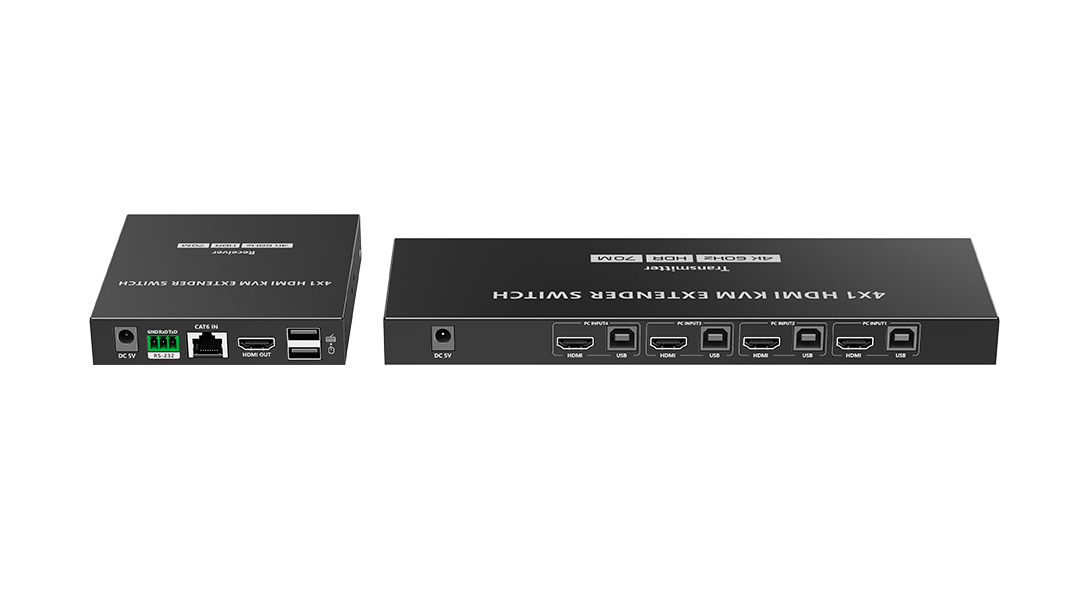

HDMI port
HDMI input x4
RJ45 port
RJ45 port x1
RS-232
3 pin（GND/RxD/TxD）, baud rate 9600
CAT6/6A/7 Transmission Distance
≤70m
≤40m: 4096x2160@24/25/30Hz,
3440x1440, 2560x1600, 2560x1440
Electrostatic protection of the whole machine
Electrostatic protection
1a Contact discharge level 2
1b Air discharge level 3 Implementation of the standard: IEC61000-4-2 lightning protection, surge protection
Working temperature
-20~60℃
Storage temperature
-30~70℃
Humidity (no condensation)
0～90%RH
Dimension
TX：250(L) x 80(W) x 25(H)mm
RX：106(L) x103(W) x25(H)mm
Material
Iron
Color
Black
Weight
TX: 542g ，RX: 298g
