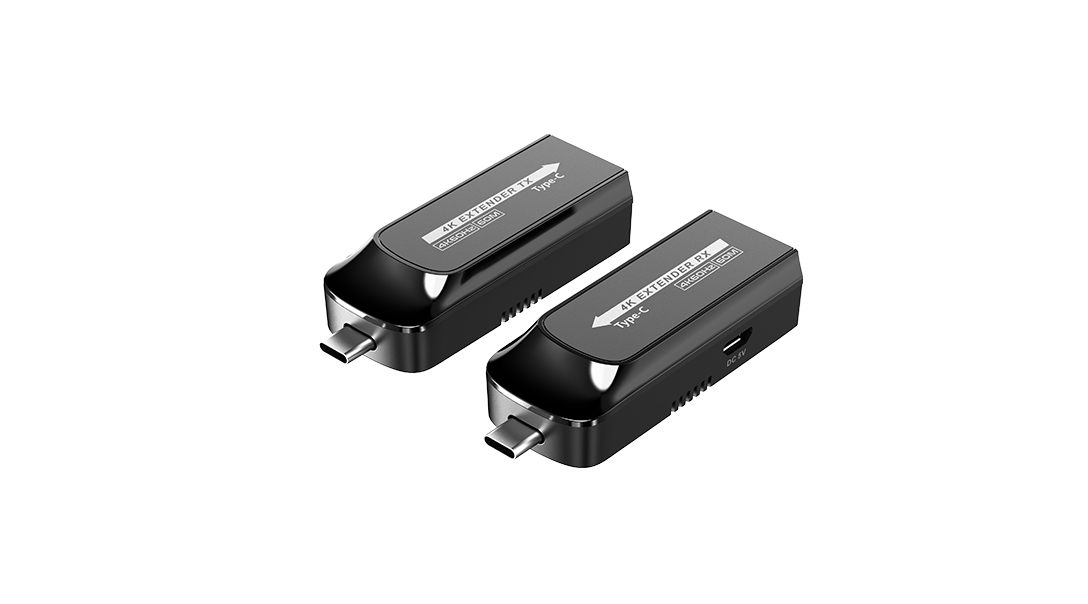

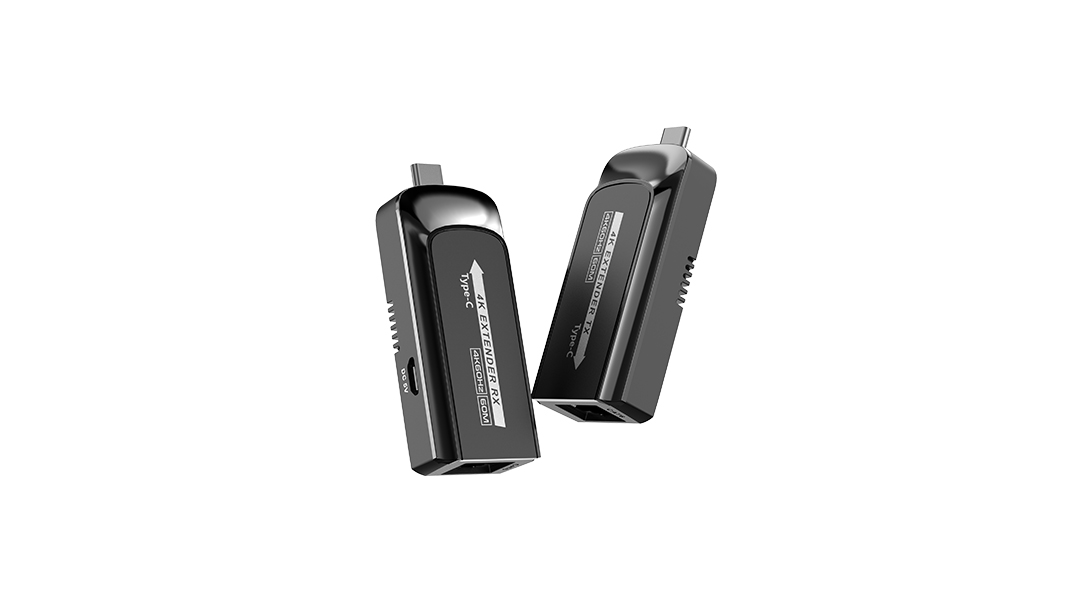

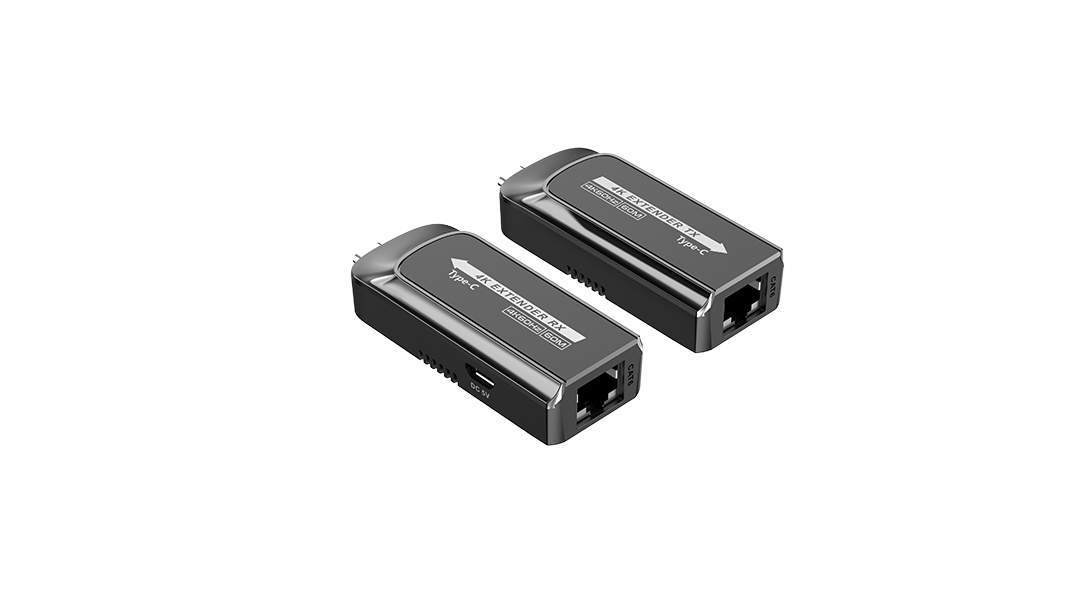

    LKV600TT

    4K@120Hz Type-C to Type-C Extender

    Featuring a Type-C transmitter and receiver, this product achieves zero latency transmission via CAT6/6A/7 network cable of UHD audio and video signals. It supports 4K@60Hz Type-C video signal transmission up to 60 meters. A variety of applications can be achieved with this kit, such as education, training, conferences, etc.
    Introduction
    Parameters
    Downloads


    Voltage
    TX: Power by the signal source
    RX: DC 5V/1A
    Power consumption
    TX < 3W, RX < 4W
    HDCP version
    HDCP 2.2, HDCP 1.4
    Max transmission rate
    18Gbps
    Resolution
    1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 1920x1200, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60/120/144Hz, 3840x2160@24/25/30/50/60
    TMDS signal
    0.7~1.2Vp-p (TMDS)
    DDC signal
    5Vp-p (TTL)
    CAT6/6A/7 Transmission Distance
    4K@60Hz ≤ 60m
    Audio formats
    PCM, DTS, Dolby
    HDR10
    Supported
    EDID passthrough
    Supported, auto downscaling
    Working temperature
    -20~45℃
    Storage temperature
    -30~60℃
    Humidity
    0~90%RH (no condensation)
    Material
    ABS
    Color
    Black
    Dimension
    TX/RX:71.5 (L) x 26.0 (W) x 15.0 (H) mm
    Weight
    TX: 17.0g ，RX: 17.0g
    ESD protection
    1a Contact discharge level 2 (±4KV)
    1b Air discharge level 3 (±8KV)
    Implementation of the standard: IEC61000-4-2
