LKV762KVM

1080P@60Hz HDR Uncompressed HDMI™ Over IP KVM Optical Extender

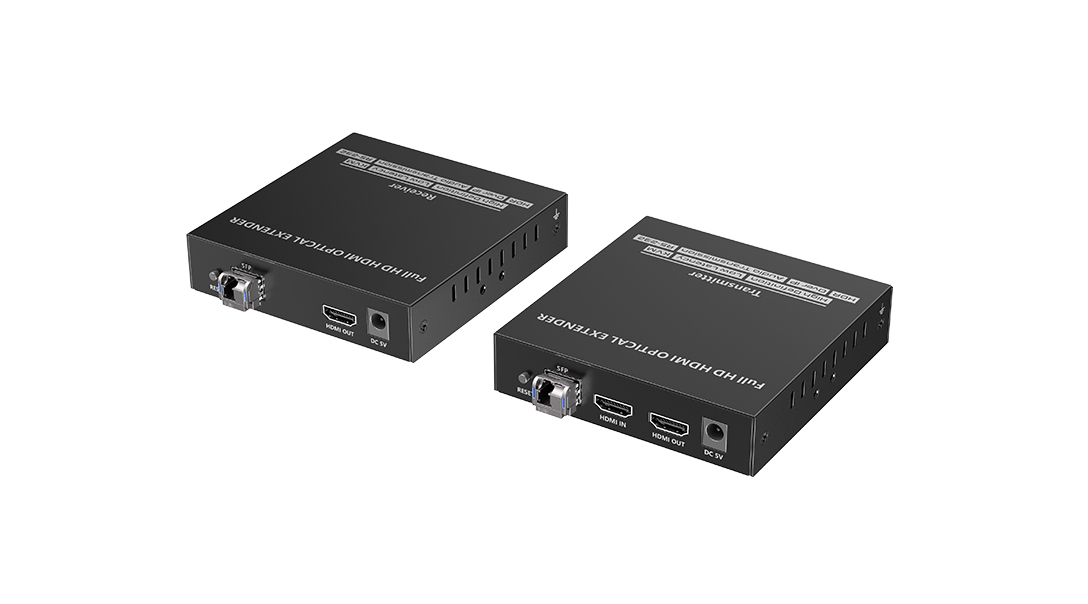

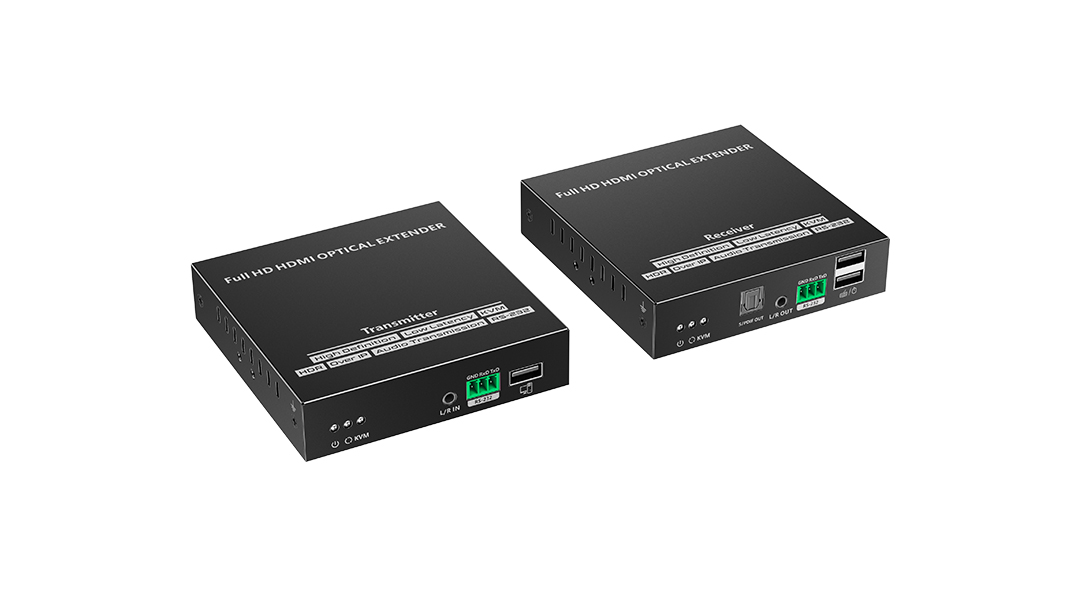

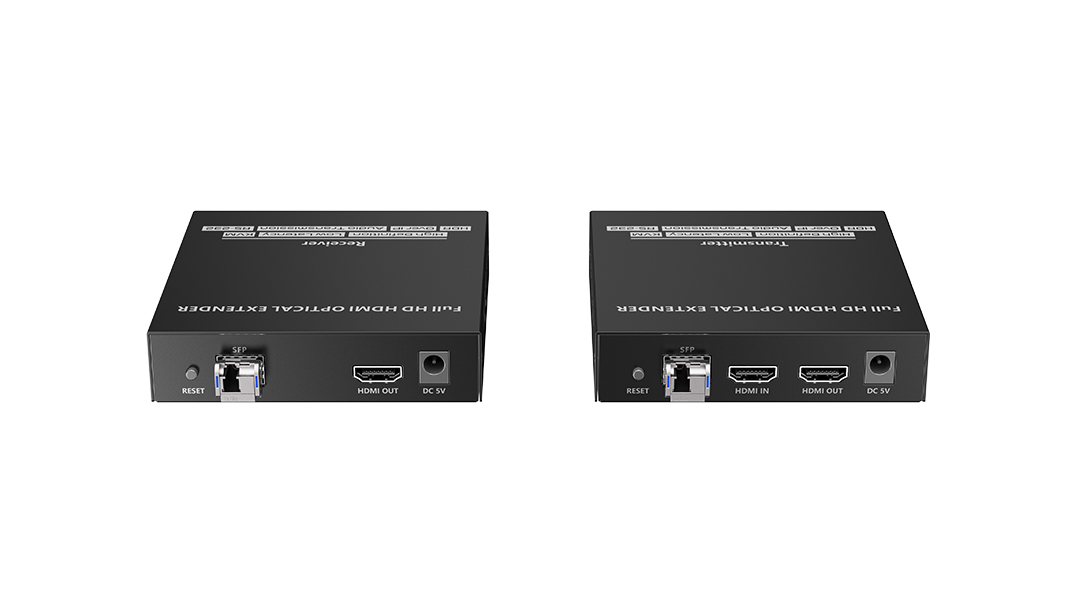

This is an HDMI™ KVM over IP optical fiber extender kit, including a transmitter and a receiver. With this device, HDMI™ signals can be transmitted at low latency and visually lossless over 40km with singlemode fiber optic cable at 1080p@60Hz resolution. This HDMI™ over IP optical KVM extender kit supports HDMI™ loop out, KVM, RS-232 passthrough, and audio extraction through S/PDIF output on the receiver. It supports point-to-point connection or one-to-many connection through gigabit switch, and cascading of switches is also supported. This extender kit is a reliable video transmission and distribution solution which can be widely used in security monitoring, rail transit, broadcasting, smart cities, home theatre and other fields.

Introduction

Parameters

Downloads


HDMI cable

≤5m

Compatibility

HDMI 1.4 (HDR10)
HDCP 1.4

Resolutions

1080p@24/25/30/50/60Hz, 720p@50/60Hz, 1024x768@ 60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60H, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz, 480P@60Hz, 576P@ 50Hz, 1400x1050@60Hz, 1366x768@60Hz, 1360x768@60Hz, 1280x768@60Hz

Connection types

One-to-one connection
One-to-many connection
Switch cascading

Transmission distance

Single-mode Optical Fiber≤40km

Transmission latency

16ms-33ms

HDMI out

LPCM 2.0/DTS-Audio5.1/Dolby Digital 5.1

S/PDIF out

LPCM 2.0/DTS-Audio5.1/Dolby Digital 5.1

3.5mm L/R output

PCM2.0

3.5mm L/R output

PCM2.0

Audio sampling rate

32kHz, 44.1kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz

Audio bit depth

16bit, 24bit

RS-232 (GND/RxD/TxD)

Default baud rate: 9600
support: 9600, 19200, 38400, 57600, 115200

Power supply

DC5V/2A

Power consumption

TX:＜5W，RX:＜4W

Working temperature

-20℃~60℃

Storage temperature

-30℃~70℃

Humidity

0~90%RH (no condensation)

Housing

lron

Weight

TX: 311g，RX: 313g

Color

Black

Dimensions

TX/RX：106(L)*103(W)*25(H)mm

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, surge protection
