LKV552

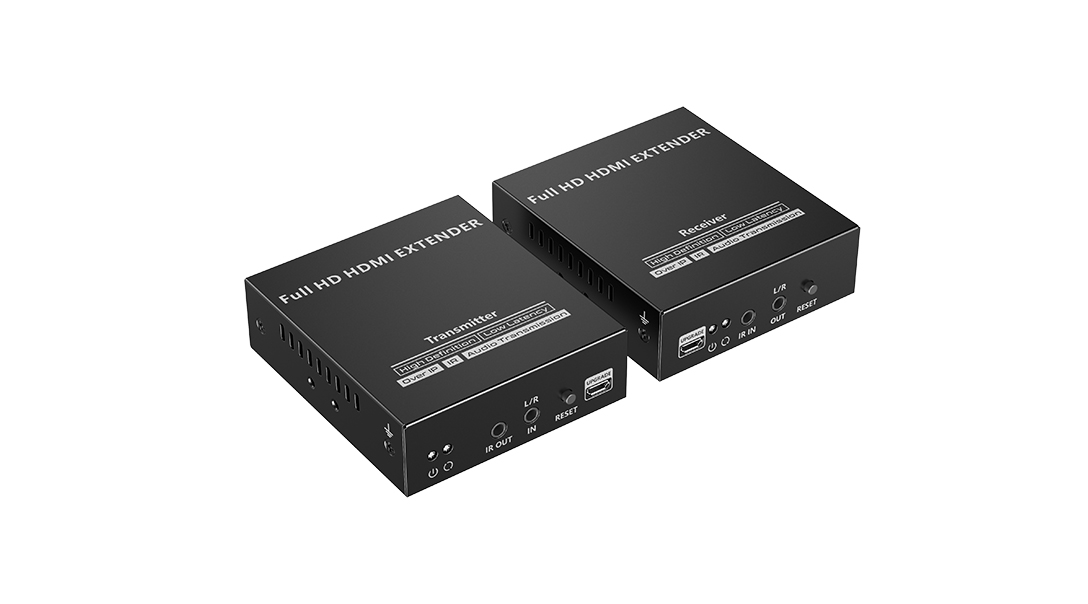

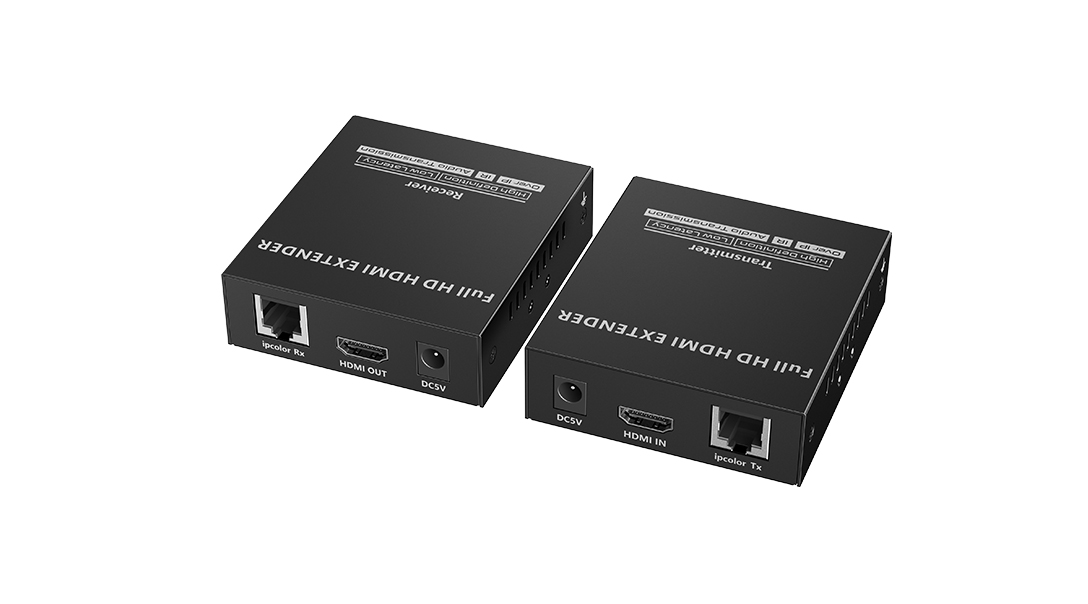

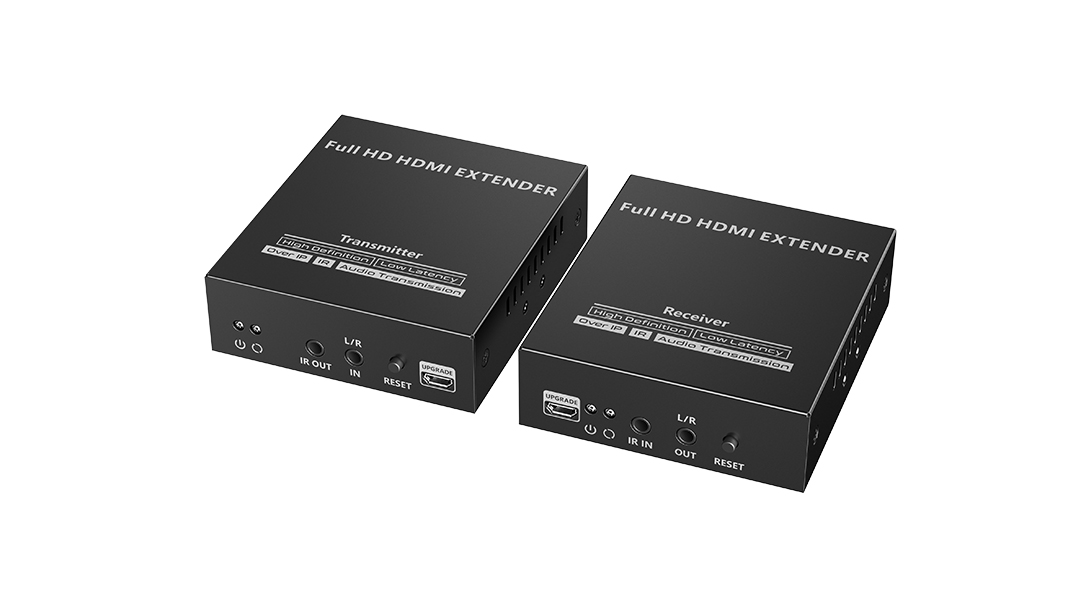

1080P@60Hz 120M HDMI™ over IP Extender

This product is a Full HD HDMI™ extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for high-definition, low-latency transmission. The 1080P@60Hz HDMI™ signal can be extended up to 120m via Category 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades. It also supports IR passback, and can be widely used in meetings, home entertainment, educational presentations, and other fields.
Introduction
Parameters
Downloads


Compatibility
HDMI 1.3
HDCP 1.4
Resolutions
1080P@24/30/50/60Hz, 720p@50/60Hz, 1920x1200@60Hz
Input and output TMDS signal
0.7~1.2Vp-p(TMDS)
Input and output DDC signal
5Vp-p(TTL)

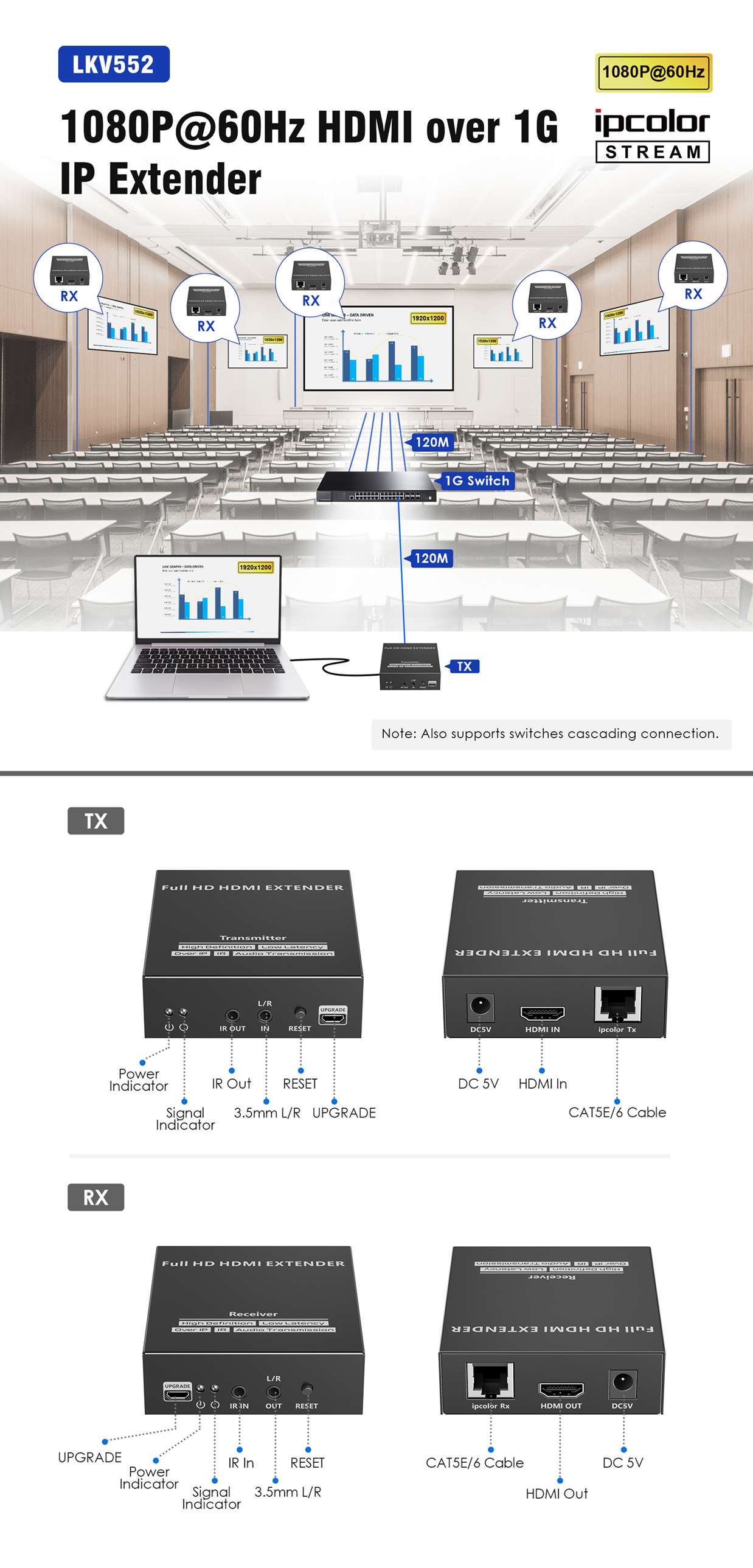

Connection types
One-to-one connection
One-to-many connection
Switch cascading
Transmission distance
Cat6/6A/7≤120m
Transmission latency
70~130ms
HDMI out
LPCM 2.0
3.5mm L/R output
PCM
IR receiving range
≤ 5m
IR frequency
20kHz~60kHz
Power Supply
DC 5V/1A
Power Consumption
TX / RX≤ 4.2W
Working temperature
-20℃~60℃
Storage temperature
-30℃~70℃
Humidity
0~90%RH (no condensation)
Housing
lron
Weight
TX: 203g
RX: 203g
Color
Black
Dimensions
85.0(L)*76.0(W)*25.0(H)mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
