HDMI length
≤ 5m
Compatibility
HDMI 1.3
HDCP 1.4
Resolutions
1080p@50/60Hz, 720p@50/60Hz, 1920x1200@60Hz
Input and output TMDS signal
0.7~1.2Vp-p（TMDS）
Input and output DDC signal
5Vp-p（TTL）

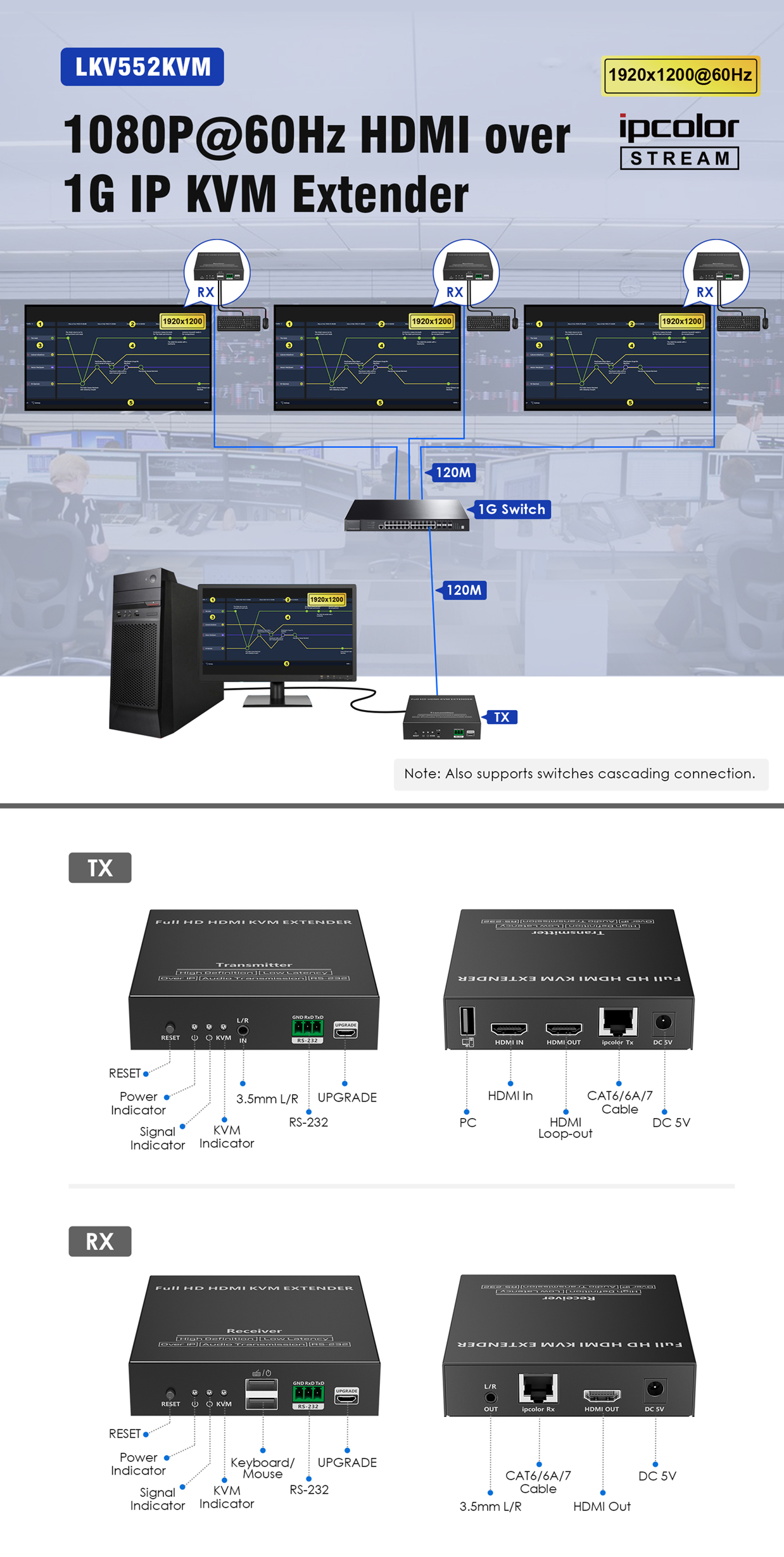

Connection types
One-to-one connection
One-to-many connection
Switch cascading
Transmission distance
Cat6/6A/7≤120m
Transmission latency
80~140ms
HDMI output
LPCM 2.0
3. 5mm L/R output
PCM
RS-232 (GND/RXD/TXD)
Default baud rate: 115200 Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
Power Supply
DC 5V/2A
Power Consumption
TX：≤ 5.5W
RX： ≤ 4W
Working temperature
- 20℃~60℃
Storage temperature
- 30℃~70℃
Humidity
0~90%RH (no condensation）
Housing
lron
Weight
TX: 315g
RX: 307g
Color
Black
Dimensions
106.0(L)*103.0(W)*25.0(H)mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
