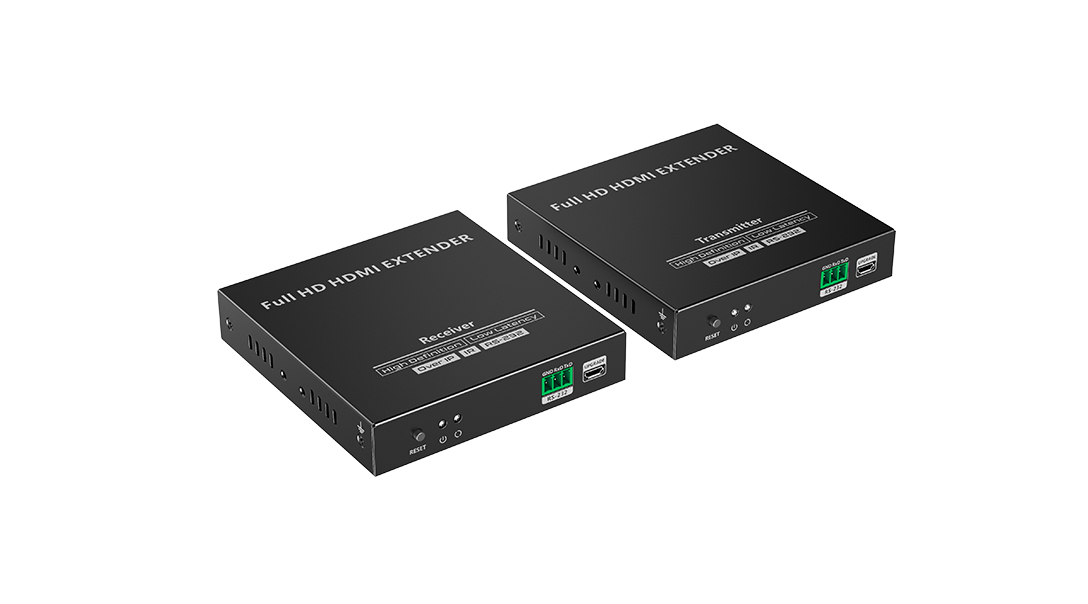

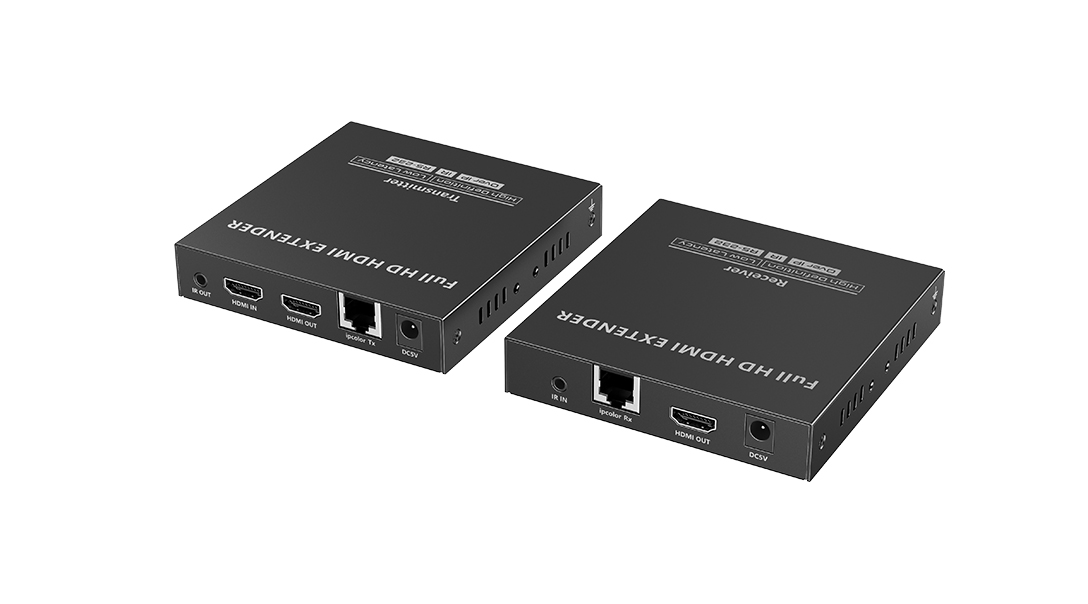

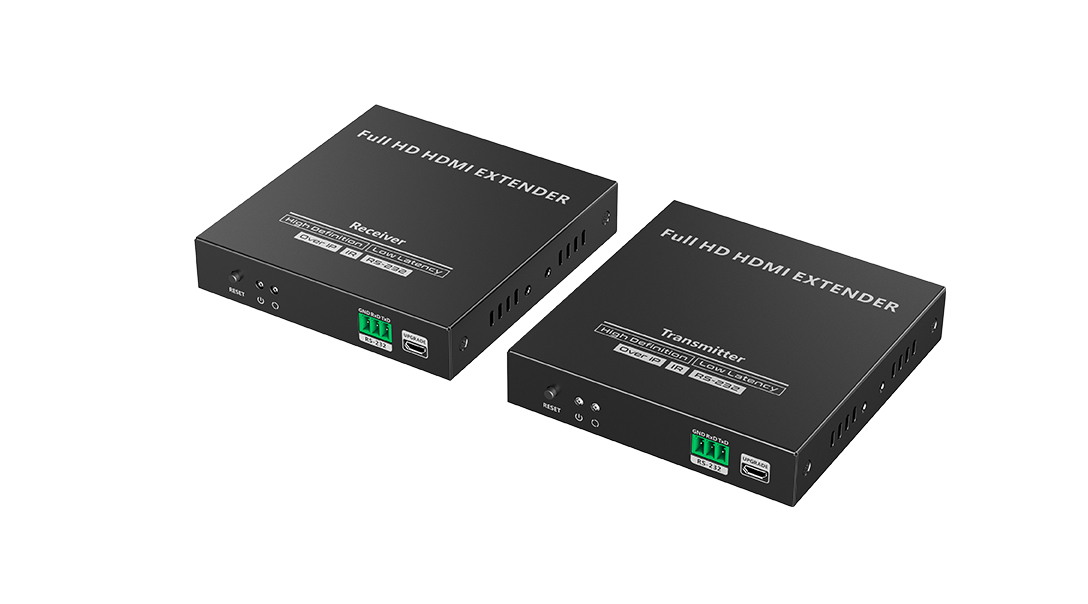

LKV552Pro

1080P@60Hz 120M HDMI™ over IP Extender

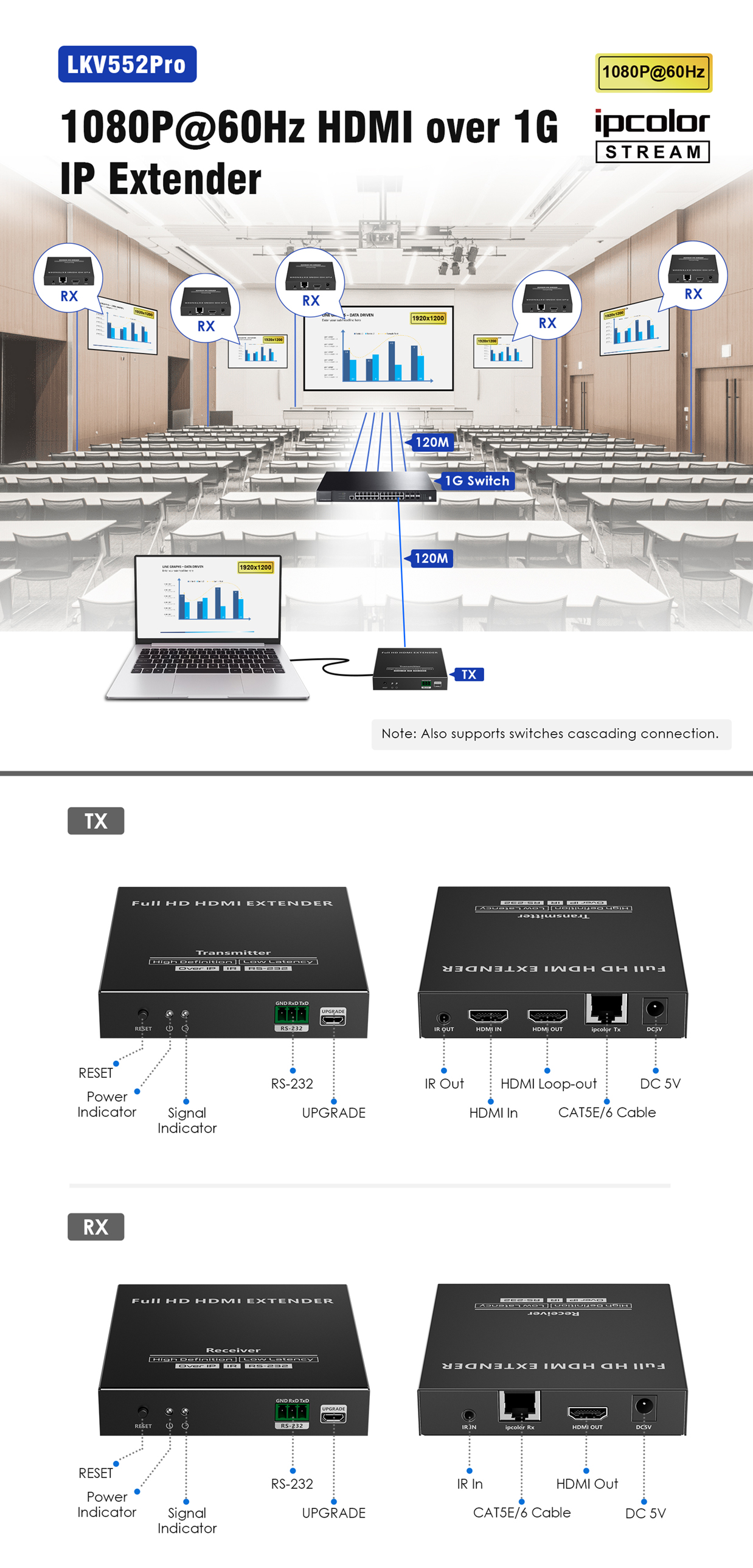

This product is a Full HD HDMI™ extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for high-definition, low-latency transmission. The 1080p@60Hz HDMI™ signal can be extended up to 120m via Category 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades. It also supports HDMI™ loop out, IR passback, and RS-232 passthrough functions, and can be widely used in meetings, home entertainment, educational presentations, and other fields.
Introduction
Parameters
Downloads


HDMI length
≤ 5m
Compatibility
HDMI 1.4
HDCP 1.4
Resolutions
1080p@50/60Hz, 720p@50/60Hz, 1920x1200@60Hz
Connection types
One-to-one connection
One-to-many connection
Switch cascading
Transmission distance
Cat6/6A/7≤120m
Transmission latency
70~180ms
IR receiving range
≤ 5m
IR frequency
20kHz~60kHz
RS-232 (GND/RXD/TXD)
Default baud rate: 115200 Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
Power Supply
DC 5V/1A
Power Consumption
TX ≤ 4.5W
RX ≤ 2.5W
Working temperature
- 20℃~60℃
Storage temperature
- 30℃~70℃
Humidity
0~90%RH (no condensation)
Housing
lron
Weight
TX:254g,RX:242g
Color
Black
Dimensions
106.0(L)*103.0(W)*20.6(H)mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
