LKV473KVM

4K@60Hz HDMI™ KVM Extender

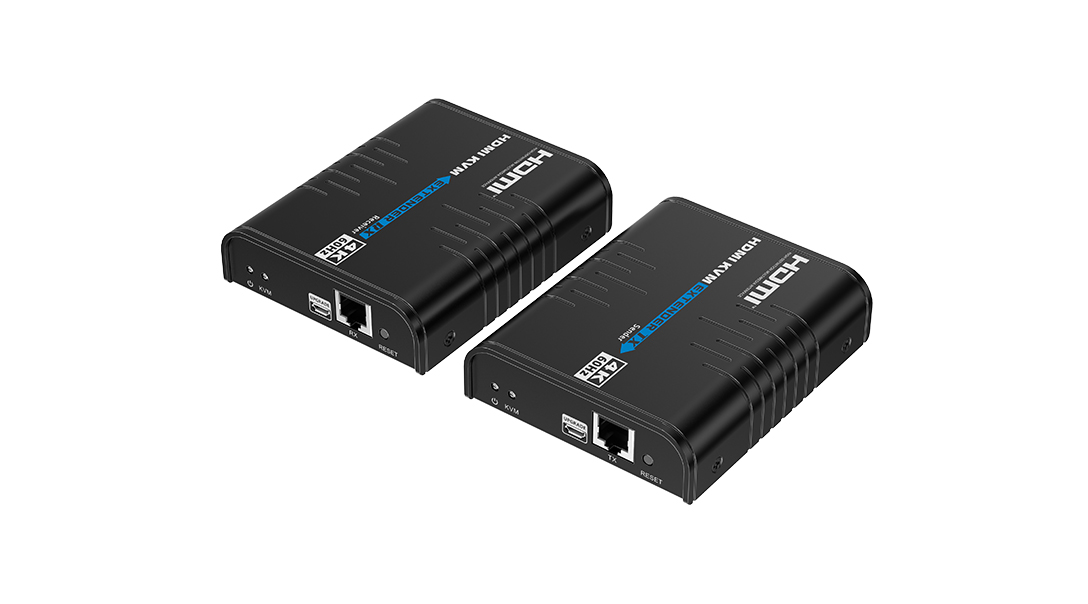

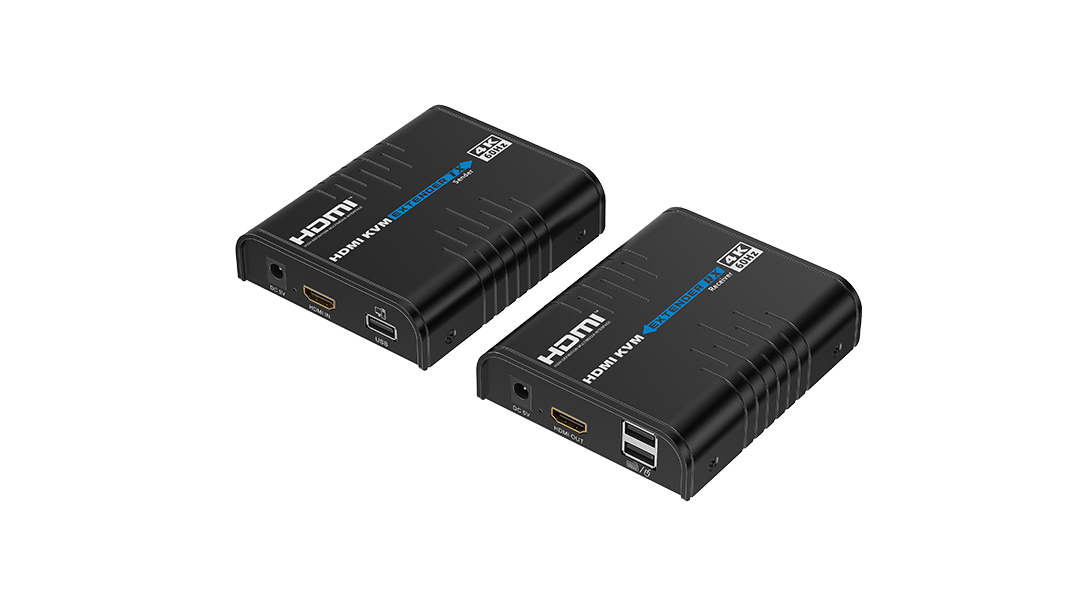

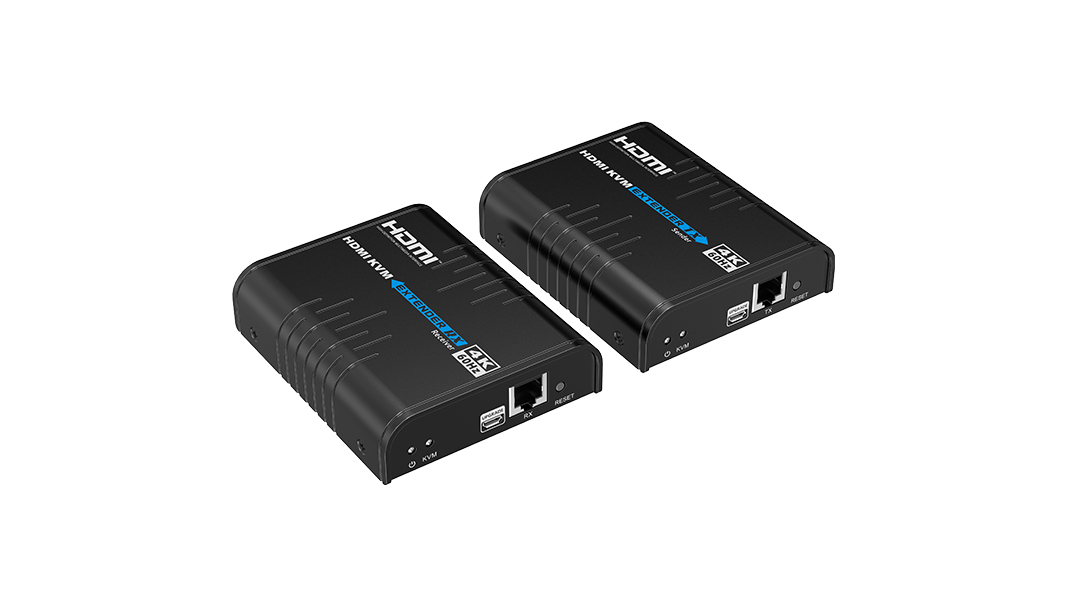

This product is a 4K@60Hz HDMI™ KVM extender kit consisting of a sender and a receiver. The 4K@60Hz HDMI™ signal can be extended up to 120m via Cat 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades, It also supports KVM function, and can be widely used in meetings, home entertainment, educational presentations, and other fields.

Introduction

Parameters

Downloads

HDMI length

≤ 5m

Maximum transfer rate

18Gbps

Compatibility

HDMI 2.0，HDCP 1.4/HDCP 2.2

Resolutions

4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600

Transmission distance

CAT5 80m / CAT5E 100m / CAT6 120m

Transmission latency

1080P: 80~110ms ，4K@60Hz: 120~170ms

HDMI output

LPCM 2.0

Power Supply

TX：DC 5V/1A，RX：DC 5V/1A

Power Consumption

TX ≤ 3.5W，RX ≤ 2.5W

Working temperature

- 20℃~60℃

Storage temperature

- 30℃~70℃

Humidity

0~90%RH (no condensation）

Housing

Aluminium(Top cover); lron(Bottom cover)

Weight

TX：240g，RX：243g

Color

Black

Dimensions

109.6(L)x89.5(w)x26.3(H)mm*2pcs

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
