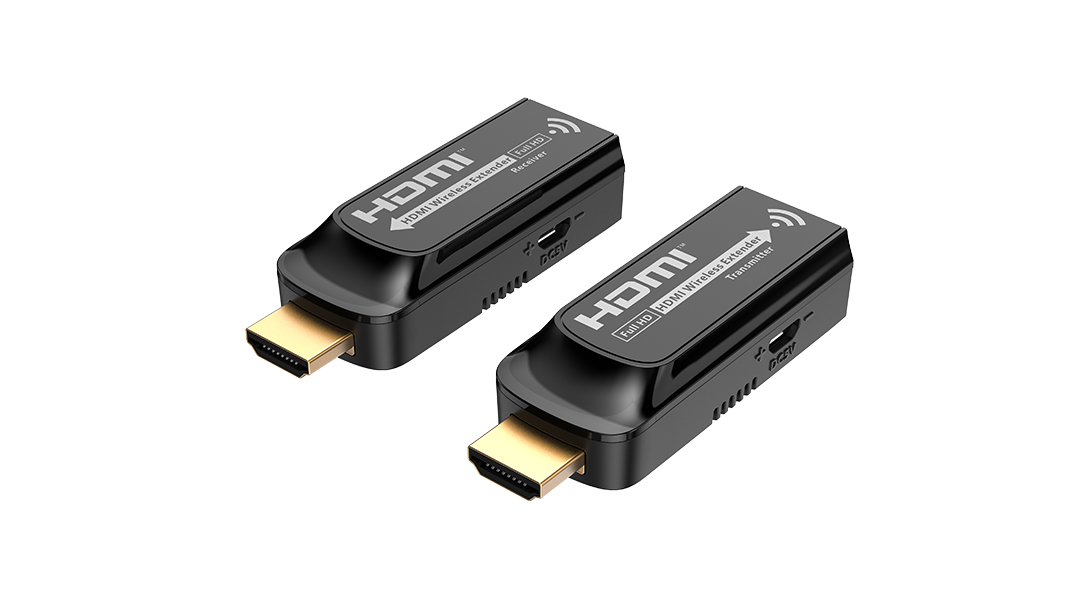

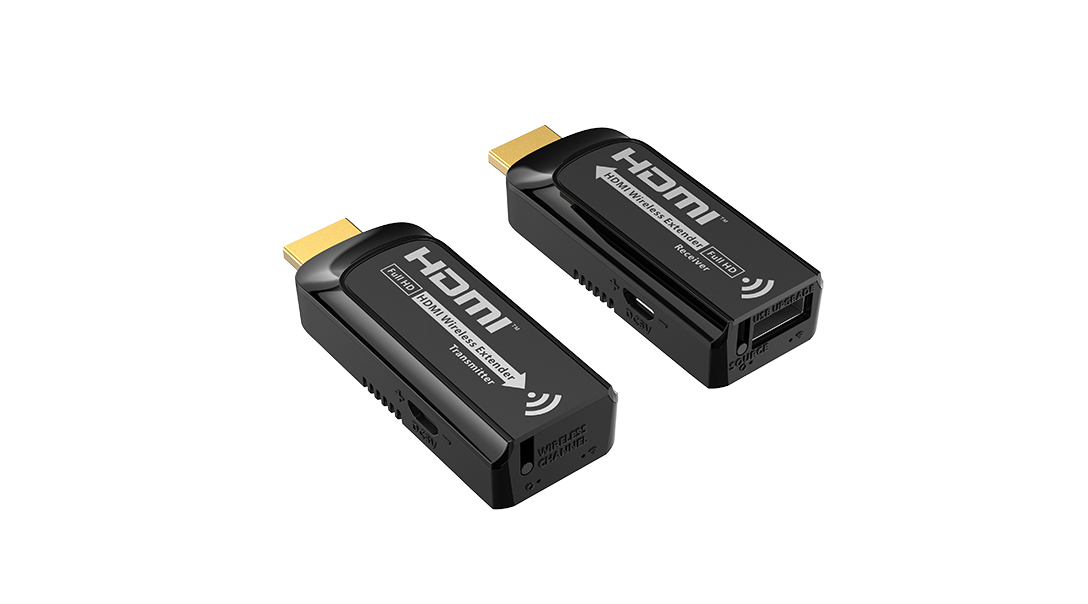

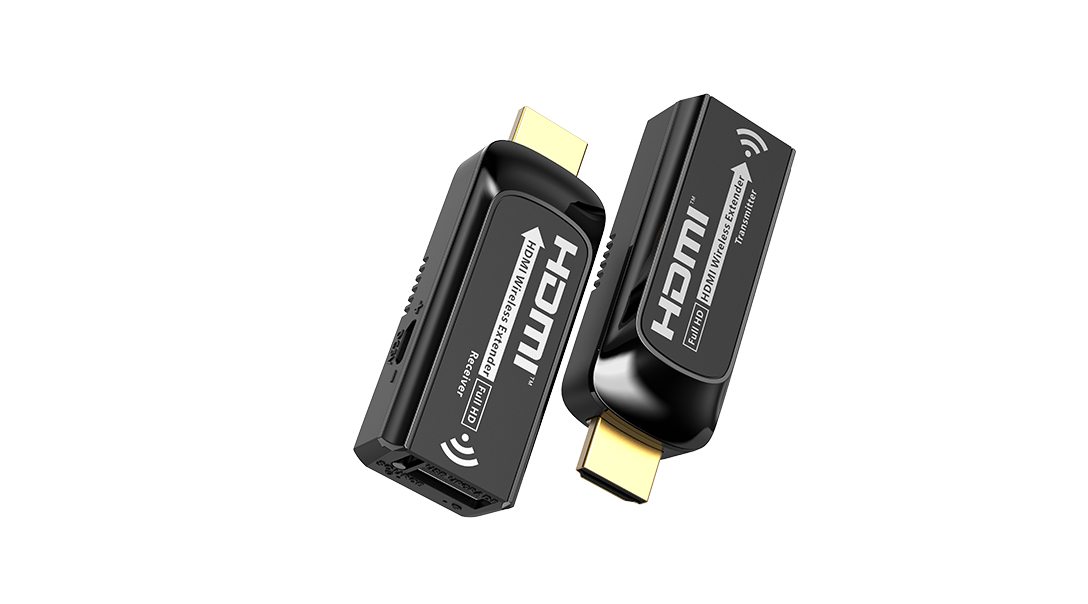

LKV433Mini

Full HD HDMI Wireless Extender

This is a Full HD HDMI wireless extender, including a transmitter and a receiver. Realize high definition and low-latency transmission. Based on the 5G wireless frequency band, with stable anti-interference and safety performance. It supports 1-to-1 wireless transmission, and the transmission distance can reach 20 meters, effectively solving problems caused by complicated wiring. An ideal wireless video transmission solution for video conferences, home entertainment, multimedia education, etc.

Introduction

Parameters

Downloads

Voltage/Current

Micro USB power supply (5V/1A)

Power consumption

TX < 4.5W, RX < 4.5W

HDMI version

HDMI 1.3

HDCP version

HDCP 1.4

Resolution supported

1080P@50/60Hz, 720P@50/60Hz, 1920x1200@60Hz

Input and output TMDS signal

0.7~1.2Vp-p（TMDS）

Input and output DDC signal

5Vp-p（TTL）

Wi-Fi Frequency bands

5.18-5.24 GHz

Transmission distance

≤ 20m

Latency

80~170ms

Connection types

One to one

SSID pairing

Supported

ESD protection

1a Contact discharge level 3
1b Air discharge level 3
Standard: IEC61000-4-2

Working temperature

-20~50℃

Storage temperature

-30~70℃

Humidity (no condensation)

0~90% RH

Dimension

TX: 71.4 (L) x 26.0 (W) x 11.1 (H) mm

Color

Black

Material

ABS

Net weight

TX: 18g; RX: 20g
