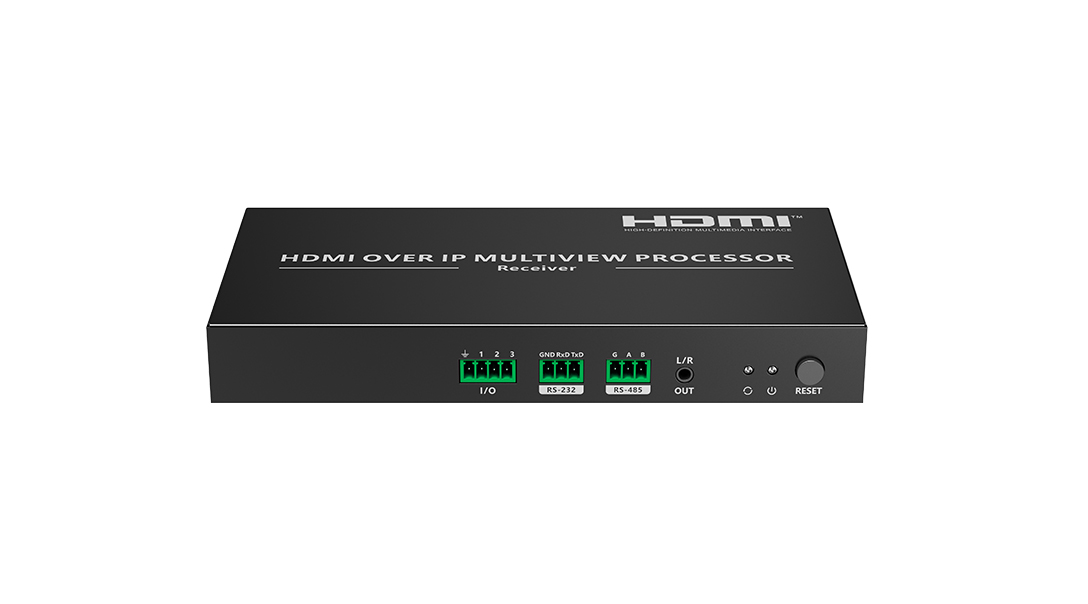

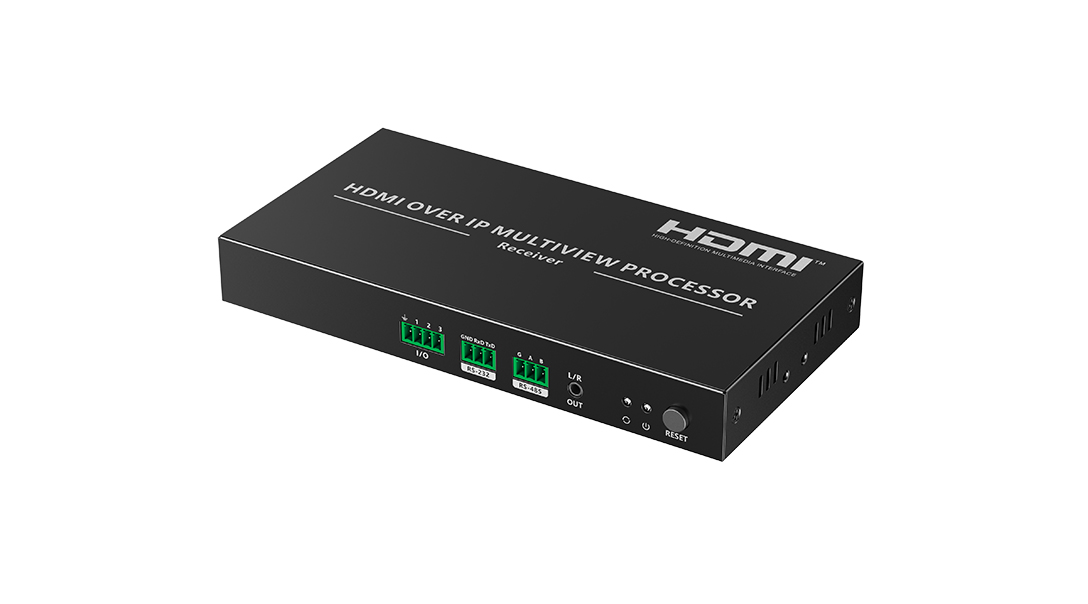

iMCS-RX-Multiview
HDMI OVER IP MULTIVIEW PROCESSOR
Features
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 4096 x 2160@60Hz resolution, backwards compatible.
3. Compatible with CAT5e/6 and above networking cables, the transmission distance can reach up to 120 meters when using CAT6 or above networking cables. The actual distance may vary slightly due to different switch performances.
4. Supports switch cascading.
5. Supports RS-232 Control.
6. Supports RS-485 Control.
7. Supports IR learning remote and control device by APP(20～60KHz).
8. Supports I/O interface control.
9. Supports POE(Power over Ethernet).
10. Support for 3.5mm L/R Channel Audio Separation.
11. After connecting to the iMCS over IP matrix, it supports receiving and processing multiple signals simultaneously. Paired with the iMCS APP, allowing remote control of the screen display view, providing four-panel and nine-panel screen view, also adjusting the view size and position freely.
12. Firmware upgrading
