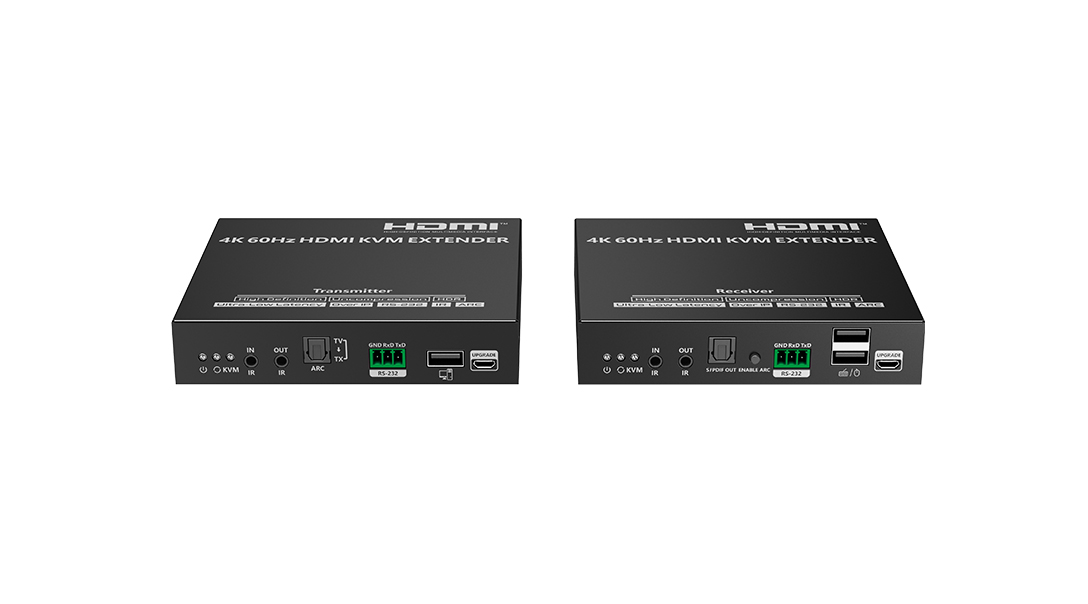

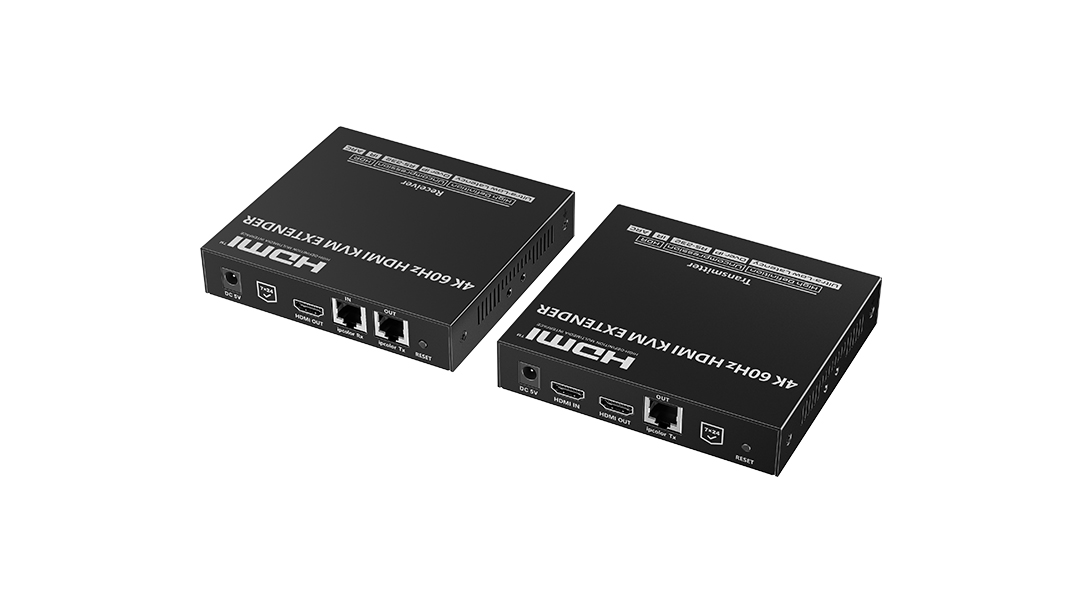

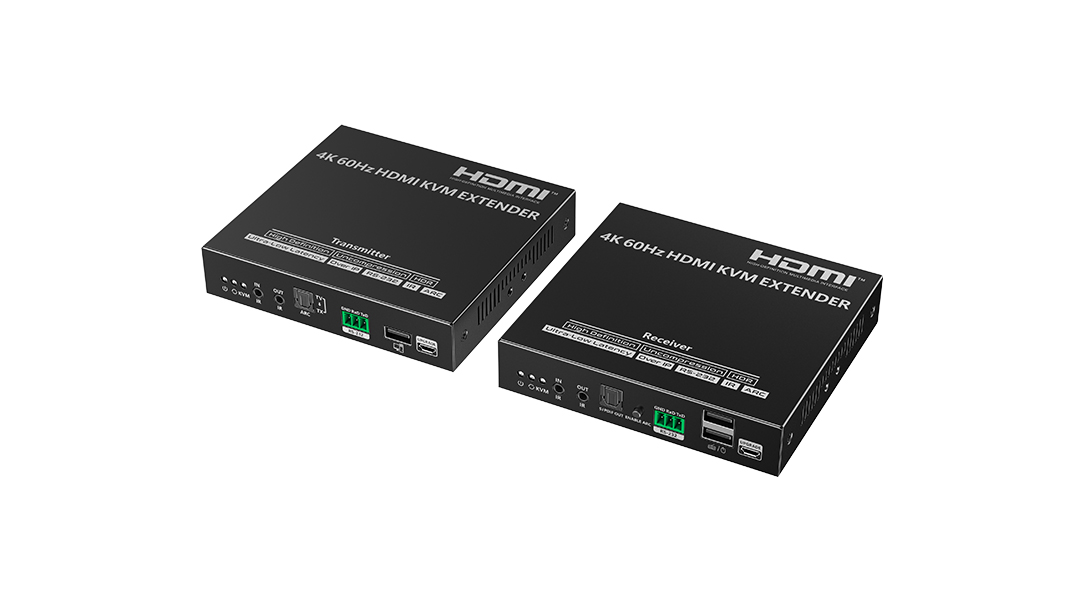

LKV593KVM-V3.0

4K@60Hz HDMI KVM Extender

Features
1. Supports resolution up to 4K@60Hz, backwards compatible.
2. Built on ipcolor PIXEL technology to deliver zero compression AV signals across long distances with ultra-low latency.
3. Supports EDID Pass-back.
4. Compatible with HDMI2.0, also compatible with HDCP1.4/HDCP2.2.
5. Compatible with Cat6/6a/7 network cables, transmission distance up to 80 meters over Cat6 cable.
6. Supports one-to-one, one-to-many connection and 10G switch cascading.
7. Supports cascading of multiple receivers.
8. Supports bi-directional IR passthrough(20~60KHz).
9. Supports RS-232 passthrough and command control.
10. Supports HDMI ARC and HDMI CEC.
11. Supports KVM function.
12. With audio embedding and extraction, and the Receiver supports S/PDIF audio output.
13. The Transmitter supports HDMI loop out.
14. Firmware upgrading via Micro USB port.
15. Lightning protection, surge protection, ESD protection.
16. Working 24/7 .
17. Supports dolby vision.

Introduction

Parameters

Downloads

HDMI length

≤5m

Maximum transfer rate

18Gbps

Compatibility

HDMI 2.0 (Deep color, 4K, HDR10, YUV4:4:4, dolby vision)
HDCP1.4/HDCP 2.2

Transmission distance

CAT6/6A/7≤80m

Transmission latency

≤8ms

Connection types

One-to-one connection
One-to-many connection
Switch cascading

Resolutions

4096x2160@24/25/30/50Hz, 3840x2160@24/25/30/50/60Hz, 1080p@24/25/50/60Hz, 720p@50/60Hz, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200, 2560x1080@60Hz, 2560x1440@60Hz, 3440x1440@60Hz

HDMI output

LPCM7.1CH/ DTS - HD/ DTS -Audio/Dolby Digital plus/ Dolby True HD 7.1CH/ Dolby Digital 7.1CH/ Dolby Atmos

S/PDIF output (ARC)

LPCM 2.1CH/DTS-Audio/Dolby Digital 5.1CH

Audio sampling rate

32KHz, 44.1KHz, 48KHz, 88KHz, 96KHz, 176KHz, 192KHz

Audio bit depth

16bit, 24bit

Receiving range

≤5m

Infrared frequency

20kHz~60kHz

CEC/ARC

Supported

RS-232 (GND/RxD/TxD)

Default baud rate: 115200 Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400

USB version

USB1.1, compatible with USB1.0

Power Port

1x DC5V

Power Supply

DC5V/3A

Power Consumption

TX：＜7.5W，RX：＜12W

Working temperature

-20℃~50℃

Storage temperature

-30℃~70℃

Humidity

0~90%RH (no condensation)

Housing

lron

Weight

TX: 480g，RX: 477g

Color

Black

Dimensions

125.00(L)*115.00(W)*25.00(H)mm

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection
Surge protection
