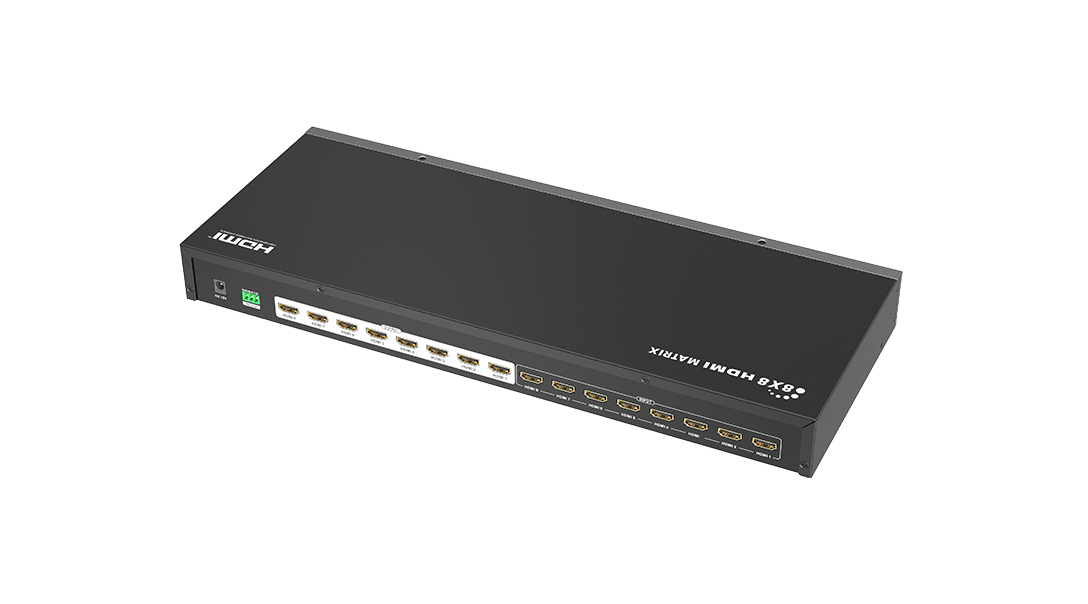

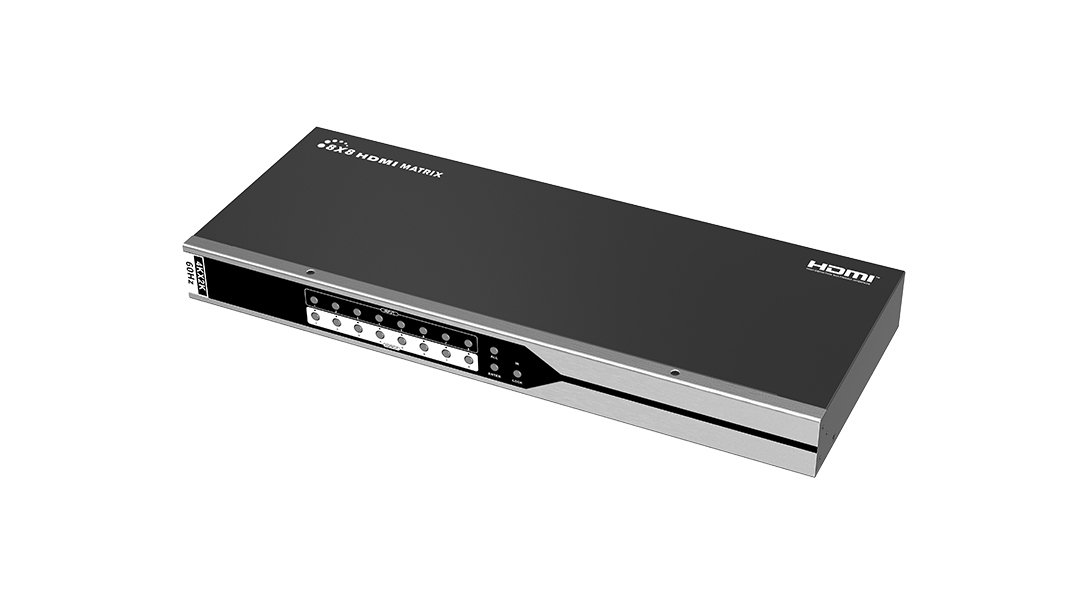

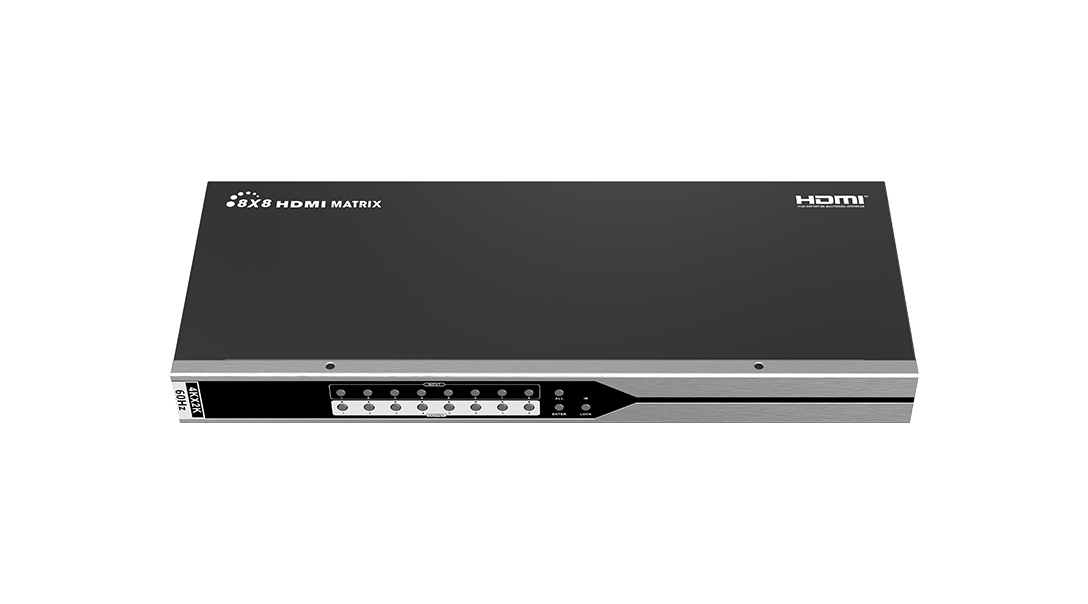

    LKV818-V2.0

    4K@60Hz 8X8 Matrix Switcher

    1. Switch and distribute any of the 8 HDMI source signals to 8 HDMI display devices at will.
    2. Support ultra-high-definition resolution 4Kx2K@60Hz.
    3. Supports 3D
    4. Supports infrared control
    5. Supports RS-232 control
    6. Data transmission rate: 18Gbps
    7. Supports key control to select input/output channels
    8. Pure hardware design, plug and play
    Introduction
    Parameters
    Downloads


    HDMI version
    HDMI 2.0
    HDCP version
    HDCP1.4/HDCP2.2
    Video bandwidth
    18Gbps
    Resolution supported
    480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/30/50/60Hz, 4096x2160@24/30/50/60Hz
    RS-232 control
    √
    Power supply
    DC12V/3A
    Dimensions
    482.45(L)X179.60(W)X44.40(H)MM
    Weight
    2.07Kg
    Consumption
    27W
    Working temperature
    ℃～60℃
    Color
    Black
    Promotional Material
    Video Material
    Product Manual
    Product specification
    Update Firmware
