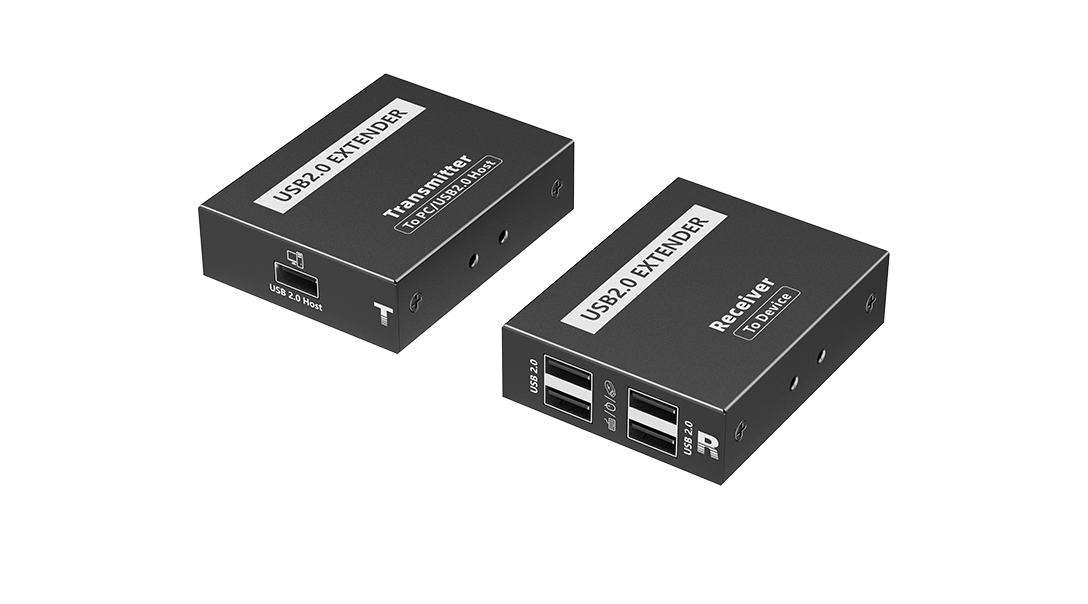

LKV200USB
120m 4-Ports USB2.0 Extender
· Features
1. Support 4 USB 2.0 inputs and 1 USB 2.0 output.
2. Compatible with CAT5e/6/7 network cables, CAT5e transmission distance can reach 100m, and CAT6/7 transmission distance can reach 120m.
3. USB 2.0 devices are supported by the receiver: Keyboard, Mouse, Touchscreen, Storage (USB Flash Drive/Portable Hard Drive), Camera, Audio Device (Speaker/Microphone）
4. Supports USB hub connection.
5. The transmitter is powered by the source device, no additional power supply is required.
6. Supports one-to-one or one-to-many connections through the 100Mbps switch, or switch cascading.
7. Supports hot-plugging of USB devices and automatically identify USB High-Speed, Full-Speed and Low-Speed
8. Lightning protection, surge protection, ESD protection.
9. Plug and play.
10. Supports stable 24/7 operation.
More
LKV300USB
USB3.0 Extender
1. The Transmitter supports USB 3.0 Super-Speed, compatible with USB 3.2 Gen1, USB 3.1 Gen1; The Receiver supports USB 3.0 Super-Speed, USB 2.0 High-Speed, compatible with USB 1.1 Full-Speed.
2. Supports four USB 3.0 input and one USB 3.0 outputs.
3. Compatible with CAT6/6A/7 network cables, CAT6 transmission distance can reach 50m, and CAT6A/CAT7 transmission distance can reach 100m.
4. Supports USB hub connection.
5. Support hot-plugging of USB devices and automatically identify USB standards.
6. Support PoC.
7. Lightning protection, surge protection, ESD protection.
8. Supports stable 24/7 operation.
More
LKV300USB-RS
USB3.2 5Gbps 100M 4-ports Extender with RS-232, Frame Sync, PoC
1. The Transmitter supports USB 3.0 Super-Speed, compatible with USB 3.2 Gen1, USB 3.1 Gen1; The Receiver supports USB 3.0 Super-Speed, USB 2.0 High-Speed, compatible with USB 1.1 Full-Speed.
2. Supports four USB 3.0 input and one USB 3.0 outputs.
3. Compatible with CAT6/6A/7 network cables, CAT6 transmission distance
can reach 50m, and CAT6A/CAT7 transmission distance can reach 100m.
4. Supports USB hub connection.
5. Support hot-plugging of USB devices and automatically identify USB
standards.
6. Support PoC.
7. Supports RS-232 and frame synchronization.
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.
More
