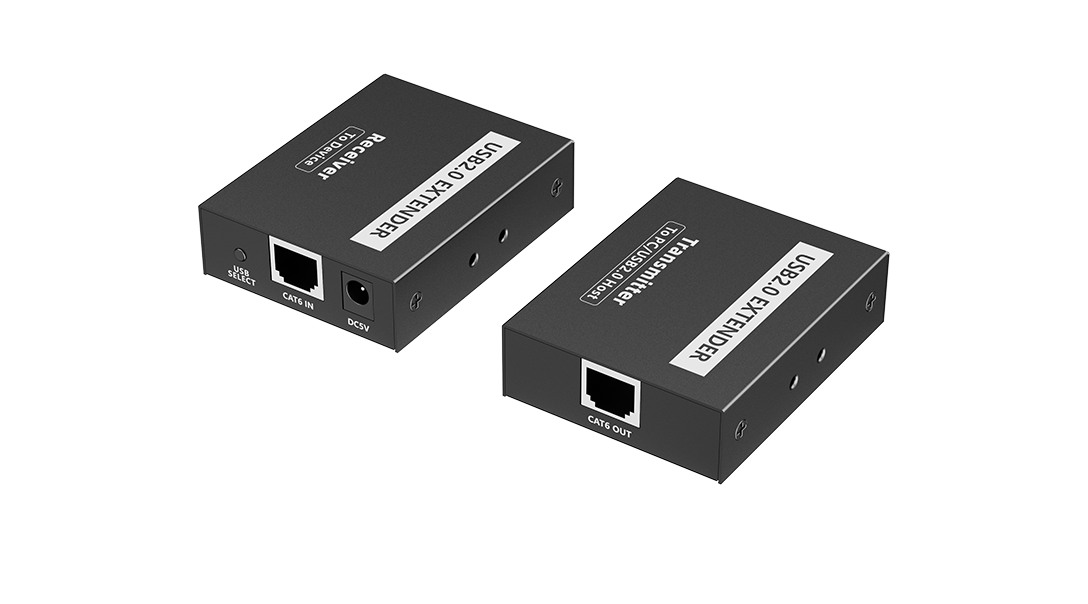

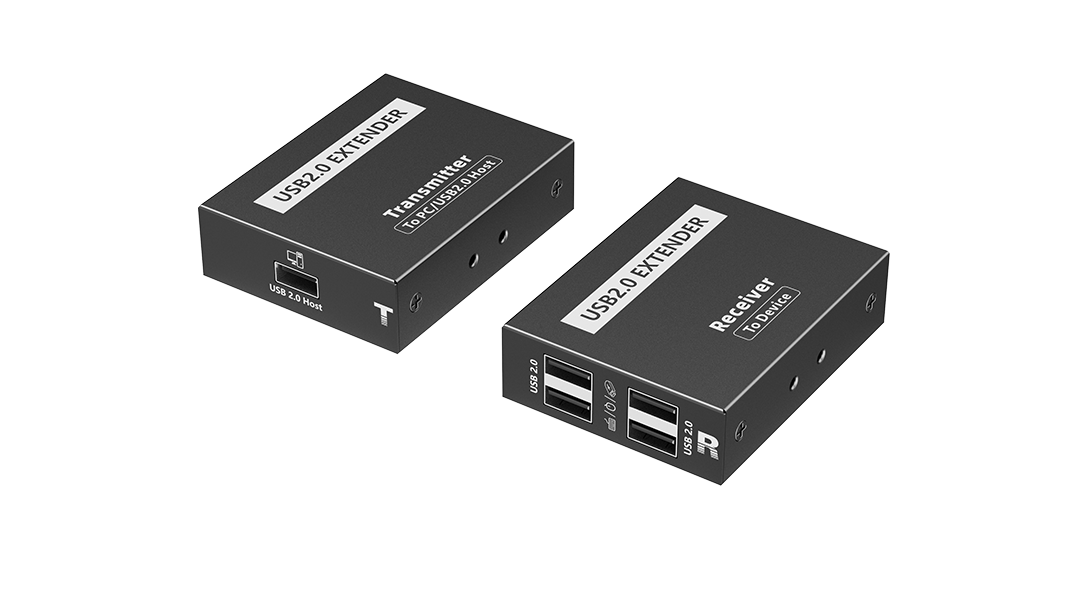

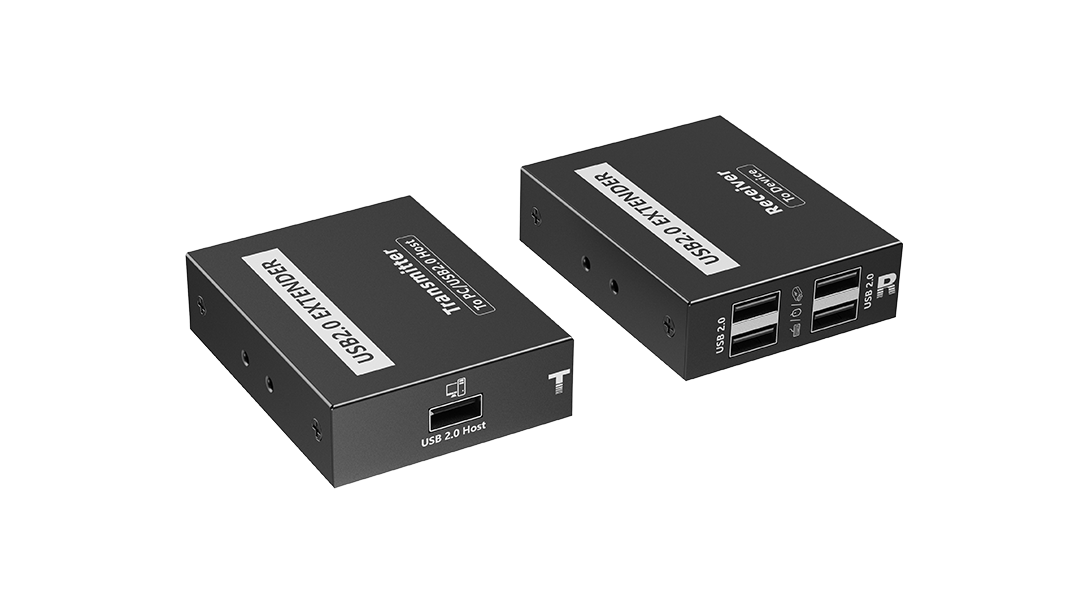

LKV200USB

120m 4-Ports USB2.0 Extender

· Features
1. Support 4 USB 2.0 inputs and 1 USB 2.0 output.
2. Compatible with CAT5e/6/7 network cables, CAT5e transmission distance can reach 100m, and CAT6/7 transmission distance can reach 120m.
3. USB 2.0 devices are supported by the receiver: Keyboard, Mouse, Touchscreen, Storage (USB Flash Drive/Portable Hard Drive), Camera, Audio Device (Speaker/Microphone）
4. Supports USB hub connection.
5. The transmitter is powered by the source device, no additional power supply is required.
6. Supports one-to-one or one-to-many connections through the 100Mbps switch, or switch cascading.
7. Supports hot-plugging of USB devices and automatically identify USB High-Speed, Full-Speed and Low-Speed
8. Lightning protection, surge protection, ESD protection.
9. Plug and play.
10. Supports stable 24/7 operation.

Introduction

Parameters

Downloads

Compatibility

USB 2.0, compatible with USB1.1, USB1.0

Transmission Distance

CAT5 80m / CAT5E 100m / CAT6 120m

USB Device

Supported USB 2.0 Devices:
Keyboard, mouse, touchscreen, storage devices (USB Flash Drive/ Portable Hard Drive), camera, and audio devices (speaker/ microphone).
Device Limitations:
1. Only one device per category (storage, camera, audio) can be recognized simultaneously.
2. For devices of the same type, only the first connected device will be recognized; subsequently connected devices will not be detected.
3. Keyboard, mouse, and touchscreen are exempt from these limitations.
Camera Specifications:
1. Supported formats: MJPEG, YUY2, H.264
2. MJPEG/H.264: Resolutions up to 2560x1440@30fps
3. YUY2: Resolutions up to 640x480@30fps Audio Specifications:
1. Supported format: PCM
2. Sampling rates: 48KHz, 44.1KHz, 16KHz

Connection types

One-to-one connection; One-to-many connection Switch cascading

Switch

Supports switches with 100Mbps and above

USB Hot-Plug

Support

Operating System

Windows, MacOS, Linux, Android

USB-A

4 ports USB-A input
1 ports USB-A output

Standard

CAT5e/CAT6/CAT6A/CAT7，Follow IEEE-568B Standard

Housing

Iron

Dimensions

76.8(L) x 60.0(W) x 20.8(H) mm

Weight

TX: 124g RX: 127g

Color

Black

Power Supply

TX：powered by the source device
RX：DC5V/1A

Power Consumption

TX≤2W
RX≤1W(Not connected to external devices)

Working temperature

-20～60℃

Storage temperature

-30～70℃

Humidity

0～90%（No condensation）

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
