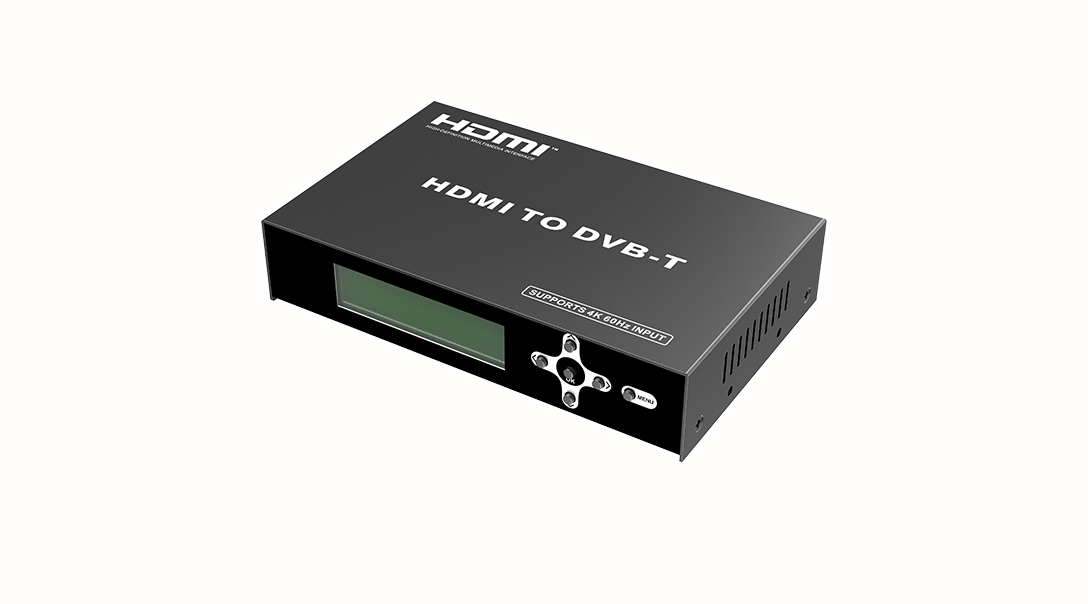

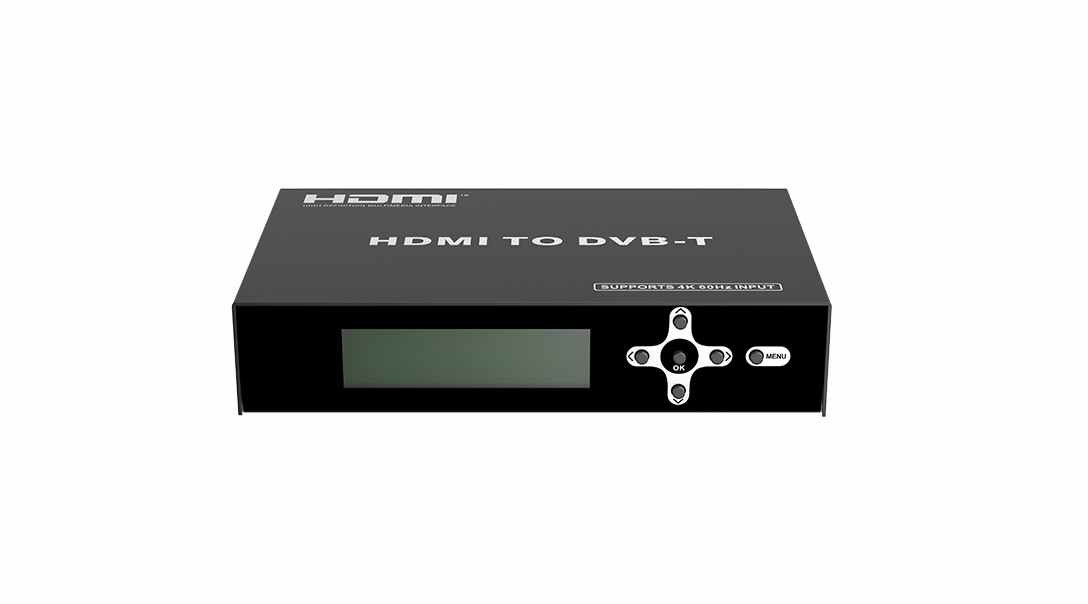

LKV579P-DVB-T

HDMI™ To DVB-T Converter

Features
1. Metal housing, stable and durable
2. Wall-mounted function, easy installation
3. Strong anti-noise and anti-interference ability
4. Support multiple modulators to be installed to distribute as many channels you need
5. Distribute one source to multiple displays with one modulator via CATV splitter
6. Support DVB-T digital high definition RF signal output
7. HDMI input signal resolution up to 3840x2160@60Hz, RF output signal resolution up to 1080P@30Hz
8. Lightning protection, surge protection, ESD protection

Introduction

Parameters

Downloads


HDMI Signal

HDMI 2.0,compatible HDCP 1.4/HDCP 2.2

HDMI DDC Signal

5Vp-p（TTL）

HDMI TMDS Signal

0.5~1.5Vp-p（TMDS）

HDMI Resolution Supported

480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080P@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz
RF OUTPUT: 720p@50/60Hz, 1080P@24/25/30Hz

Video Encoding

H.264

Audio Encoding

MPEG2

Coaxial output Standard

DVB-T

Coaxial Cable reqired

RG6，RG7，RG11

Frequency

177.5 to 866MHz

Effective Bitrate

Max：24M bits

Insert Loss

+2dBm

RF output Wattage(TX)

-46dBm~-19dBm

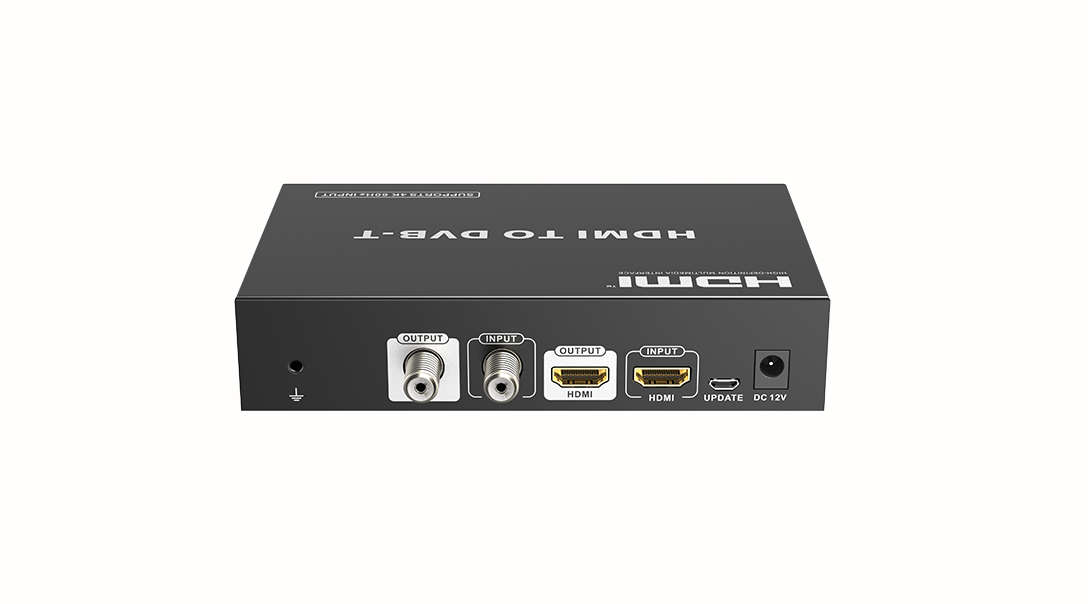

RF Interface

British system（75Ω type F）

Delay Time

200~300ms（Depends on the decoding ability of receivers）

Audio format

MPEG（44.1kbps, 48kbps）

Power Supply

DC12V/1A

Product Consumption

<8W

Working temperature

~20~60℃

Stock temperature

~30~70℃

Relative Humidity

0~90%RH（No Condensation）

Product Dimension

158x115.3x33mm

Weight

476g

Color

Black
