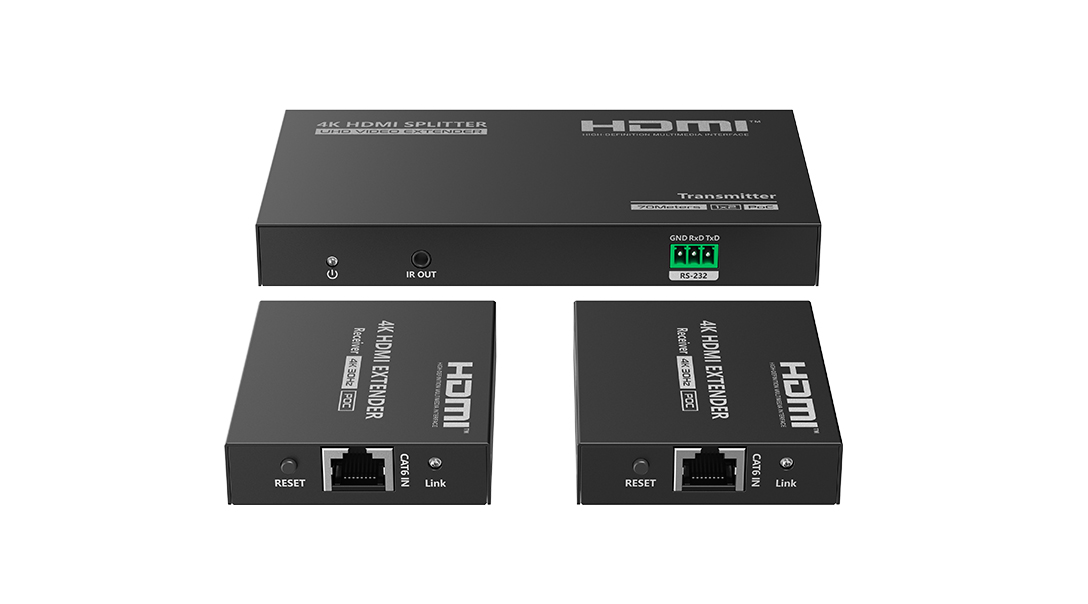

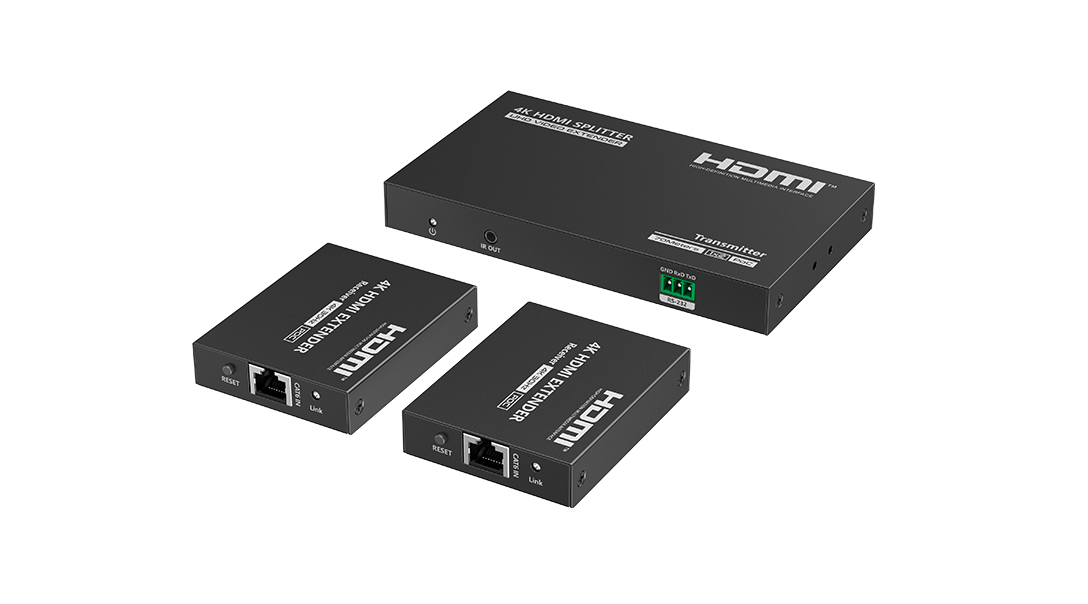

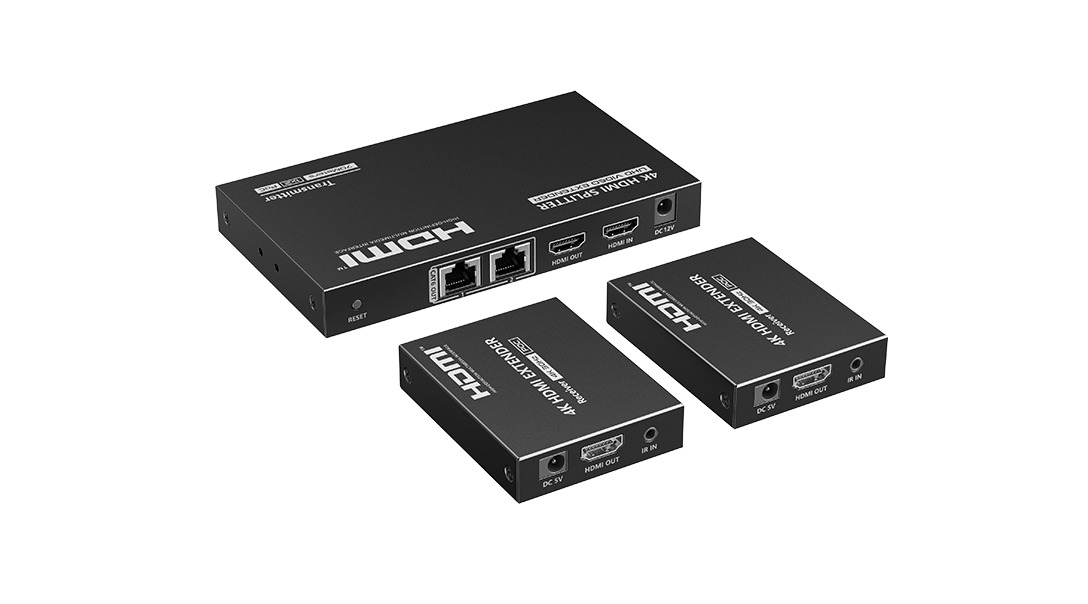

LKV722P-N

1x2 HDMI Splitter Extender

Features
1. Zero-latency transmission.
2. Support up to 4K@30Hz resolution, downward compatible.
3. Support HDR10.
4. Distribute 1 HDMI source to 2 HDMI displays.
5. Support CAT6/6A/7 network cable, which can transmit 1080p signal up to 70 meters and 4K30Hz signal up to 40 meters.
6. Support power over network cable, only the transmitter needs to be powered.
7. The transmitter support HDMI loop out.
8. Support IR passthrough(20~60KHz).

Introduction

Parameters

Downloads


Mode

1 in 2 out

Compatibility

HDMI 1.4，HDCP1.4

Resolution

800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 4K@24/25/30Hz

Audio Formats

PCM, LPCM, Dolby Digital 5.1CH, Dolby TrueHD 5.1CH

CAT6/6A/7

1080p@60Hz≤70 meters
4K@30Hz≤40 meters

IR Passback

IR passback (20-60khz)

RS-232

3Pin：GND-RxD-TxD，follows RS-232 levels Default baud rate：9600

Working temperature

-20~60℃

Storage temperature

-30~70℃

Humidity

0~90% RH

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection
Surge protection

Power Supply

TX: DC12V/1A

Consumption

TX+RX＜11W

Housing

Iron

Color

Black

Weight

TX: 250g
RX: 115g x2

Dimensions

TX: 151.5(L) x 86.5(W) x 19.0(H)mm
RX: 75.0(L) x 60.0(W) x 16.5(H) mm
